250AETOXLX (1994)
Bottom Cowling

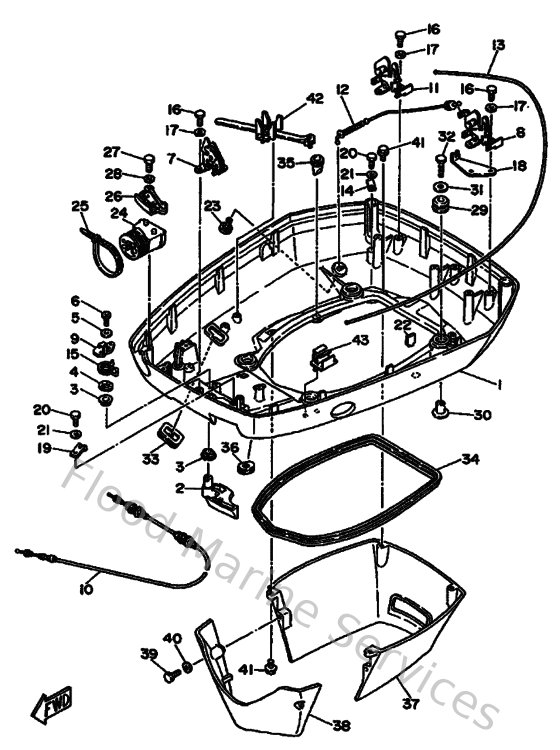

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
61A42711014D
Cowling, Bottom (61A-42711-00-4D)
Loading…
↗
2
61A42815004D
Lever, Clamp
Loading…
↗
3
9038613M8800
Bush(6r3)
Loading…
↗
4
9020613M1000
Washer, wave (6e5)
Loading…
↗
5
9020106M3000
Washer, plate (6a1)
Loading…
↗
6
9010906M5000
Bolt(61a)
Loading…
↗
7
6R3428240000
Base, clamp lever
Loading…
↗
8
6R3428110100
Stay
Loading…
↗
9
6R3428160000
Lever, clamp
Loading…
↗
10
6R3428501000
Wire, complete
Loading…
↗
11
6R3428111000
Stay
Loading…
↗
12
61A428500100
Wire Complete
Loading…
↗
13
61A428502000
Wire, complete
Loading…
↗
14
682441170000
Bracket 1
Loading…
↗
15
6R3428130000
Spring, clamp lever
Loading…
↗
16
970950601600
Bolt, hexagon deep recess
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
6N7428280000
Plate, clamp
Loading…
↗
19
6R3428280000
Plate, clamp
Loading…
↗
20
970950601000
Bolt
Loading…
↗
23
6E5443910000
Nipple, hose
Loading…
↗
24
61A427250100
Grommet
Loading…
↗
25
9046513M3900
Clamp(6e8)
Loading…
↗
26
61A42738005B
Plate, fitting
Loading…
↗
29
9048022M1500
Grommet (6e5)
Loading…
↗
30
9038708M3700
Coller (6e5)
Loading…
↗
31
9020108M5400
Washer, plate (6e5)
Loading…
↗
32
970900803500
Bolt(70w)
Loading…
↗
33
688427261000
Grommet
Loading…
↗
34
61A427160000
Rubber seal 1
Loading…
↗
35
61A427170000
Rubber, seal 2
Loading…
↗
36
61A427270000
Grommet
Loading…
↗
37
61A42741004D
Apron
Loading…
↗
38
61A42771004D
Apron
Loading…
↗
39
970800603000
Bolt(jf7)
Loading…
↗
41
975950652000
Bolt(7u8)
Loading…
↗
42
688825940000
Clamp
Loading…
↗
43
6E5825940000
Clamp
Loading…
↗
