Yamaha Outboard Parts - Bottom Cowling - 25VMH (2001) | Flood Marine

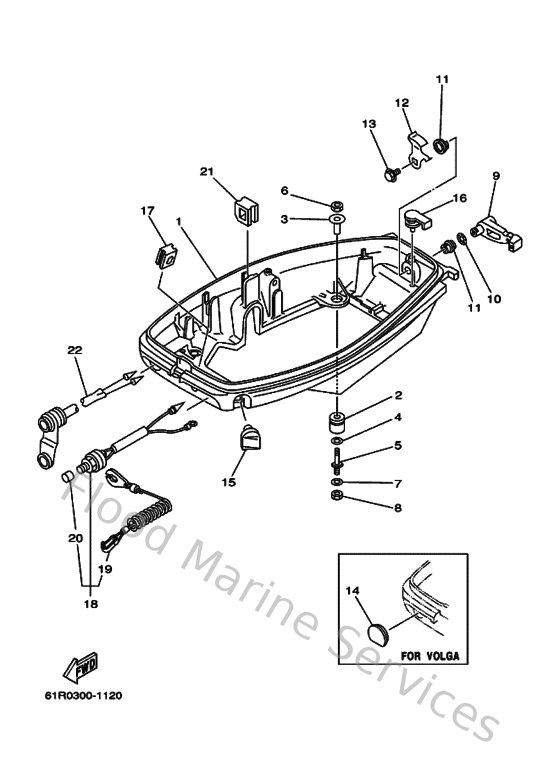

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
68942711044D
Cowling, bottom 1
Loading…

↗
2
9048015M0600
Grommet (689)
Loading…

↗
3
9038708M2500
Collar (689)
Loading…

↗
4
9020108M8700
Washer (6g0)
Loading…

↗
5
6G0427960000
Bolt 1
Loading…

↗
6
953800870000
Nut(661)
Loading…

↗
7
929950860000
Washer, plain (663)
Loading…

↗
9
689428150000
Lever, clamp 1
Loading…

↗
10
902061205200
Washer, wave (666)
Loading…

↗
11
903861206900
Bush(666)
Loading…

↗
12
689428160000
Lever, clamp 2
Loading…

↗
13
9011906M7300
Bolt(gh1)
Loading…

↗
14
682427240000
Grommet
Loading…

↗
15
689427250100
Grommet
Loading…

↗
16
647425230000
Spacer, friction
Loading…

↗
17
61N263260000
Grommet
Loading…

↗
18
6E9825750200
Engine stop switch assembly
Loading…

↗
19
682825560000
Lanyard, stop switch
Loading…

↗
20
6898257Y0000
Cap
Loading…

↗
21
9048017M0800
Grommet (689)
Loading…

↗
22
682843810000
2p concent 1
Loading…

↗
