30AMH (1992)
Bottom Cowling

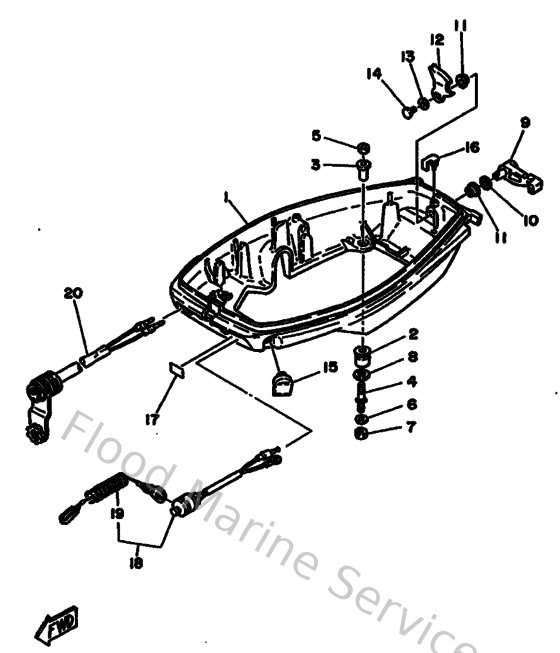

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
9048015M0600
Grommet (689)
Loading…
↗
3
9038708M2500
Collar (689)
Loading…
↗
4
6G0427960000
Bolt 1
Loading…
↗
5
953800870000
Nut(661)
Loading…
↗
6
929900860000
Washer, plain (663)
Loading…
↗
8
9020108M8700
Washer (6g0)
Loading…
↗
9
689428150000
Lever, clamp 1
Loading…
↗
10
902061205200
Washer, wave (666)
Loading…
↗
11
903861206900
Bush(666)
Loading…
↗
12
689428160000
Lever, clamp 2
Loading…
↗
13
9020106M0200
Washer,plate (6k8)
Loading…
↗
14
973130601000
Bolt
Loading…
↗
15
689427250000
Grommet
Loading…
↗
16
647425230000
Spacer, friction
Loading…
↗
17
6A1427920100
Mark (100:1)
Loading…
↗
18
689825750200
Engine stop switch assembly
Loading…
↗
19
682825560000
Lanyard, stop switch
Loading…
↗
20
682843810000
2p concent 1
Loading…
↗
