30DEO (2001)
Bottom Cowling

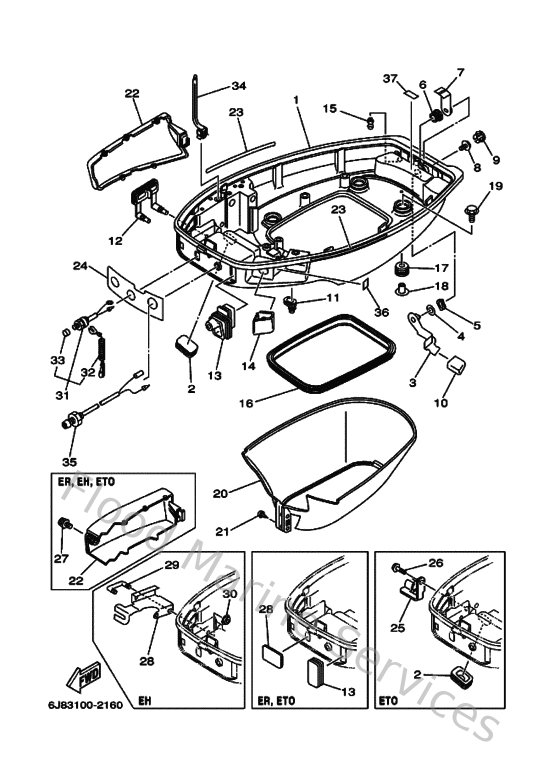

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6J842711034D
Cowling, bottom 1
Loading…
↗
2
6H4427260000
Grommet
Loading…
↗
3
6J842815004D
Lever, clamp
Loading…
↗
4
9020212M2500
Washer, plate(6j8)
Loading…
↗
5
902061205200
Washer, wave (666)
Loading…
↗
6
9038612M6100
Bush(6j8)
Loading…
↗
7
6J8428160000
Lever, clamp
Loading…
↗
8
958950601200
Bolt, flange deep recess
Loading…
↗
9
6J8428310000
Bushing
Loading…
↗
10
6J8427280100
Cap
Loading…
↗
11
6G1427270000
Grommet
Loading…
↗
13
6J8427261000
Grommet
Loading…
↗
14
6J8427250100
Grommet
Loading…
↗
15
6H3443910100
Nipple, hose
Loading…
↗
16
6J8427160000
Rubber seal 1
Loading…
↗
17
9048009M2100
Grommet (6e9)
Loading…
↗
18
9038706M4100
Coller (6e9)
Loading…
↗
19
9011906M6100
Bolt, with washer
Loading…
↗
20
6J8427410100
Apron
Loading…
↗
21
9016406M0100
Screw (6f5)
Loading…
↗
22
6J8427235100
Cover, bottom (dbn:gray)
Loading…
↗
23
6J8427350000
Protector
Loading…
↗
24
6J8427192000
Panel, front lower
Loading…
↗
27
6J8428460000
Screw
Loading…
↗
28
6J8427262000
Grommet
Loading…
↗
34
9046513M7600
Clamp
Loading…
↗
35
6J8854100000
Emergency signal light assembly
Loading…
↗
37
6E7427911000
Mark 1
Loading…
↗
15
6BL443910000
Nipple, hose
