40HM (1986)
Bottom Cowling

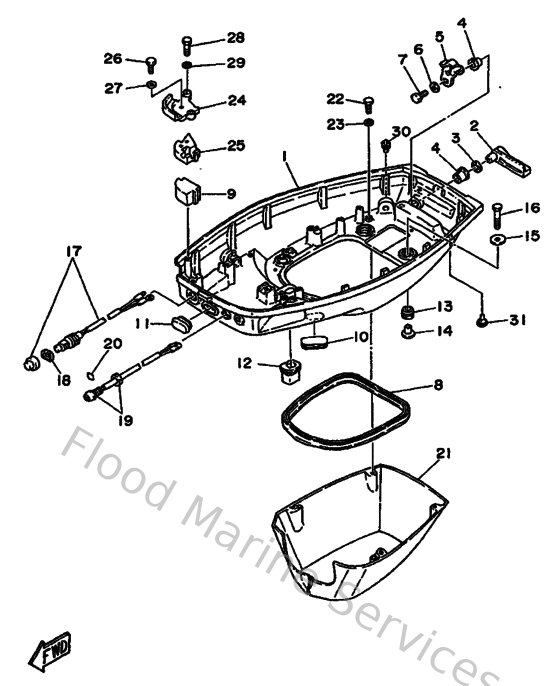

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H4428150000
Lever, clamp 1
Loading…
↗
3
902061205200
Washer, wave (666)
Loading…
↗
4
903861206900
Bush(666)
Loading…
↗
5
6H4428160000
Lever, clamp 2
Loading…
↗
6
902010606800
Washer,plate (6k8)
Loading…
↗
7
973130601000
Bolt
Loading…
↗
8
6H4427160000
Rubber seal 1
Loading…
↗
9
6H4427240000
Grommet
Loading…
↗
10
6H4427260000
Grommet
Loading…
↗
12
682427270000
Grommet
Loading…
↗
13
9048009M2100
Grommet (6e9)
Loading…
↗
14
9038706M4100
Coller (6e9)
Loading…
↗
15
902010641600
Washer, plate(663)
Loading…
↗
16
973130603000
Bolt
Loading…
↗
17
6A0825500100
Stop switch assembly
Loading…
↗
19
6H4854110000
Overheat warning lamp
Loading…
↗
22
973130601600
Bolt, hexagon deep recess
Loading…
↗
23
929030660000
Washer, plain (646)
Loading…
↗
24
6H4485310094
Bracket, Remote Control 1
Loading…
↗
25
6H4485320094
Bracket, Remote Control 2
Loading…
↗
27
929900560000
Washer, plain (646)
Loading…
↗
28
973130602000
Bolt(7u8)
Loading…
↗
30
6E5443910000
Nipple, hose
Loading…
↗
31
6H4427480000
Grommet
Loading…
↗
