40QMH (1990)
Bottom Cowling

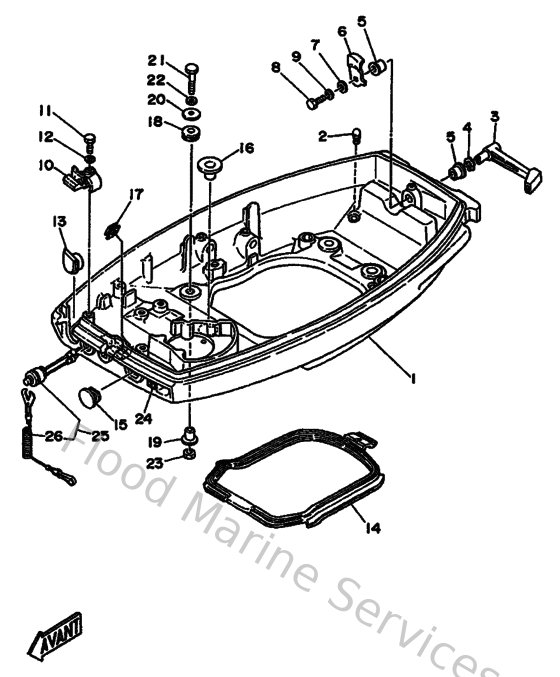

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
676243760100
Pipe, Joint 1
Loading…
↗
4
902061205200
Washer, wave (666)
Loading…
↗
5
903861206900
Bush(666)
Loading…
↗
6
682428160000
Lever, Clamp
Loading…
↗
7
9020106M0200
Washer,plate (6k8)
Loading…
↗
8
973130601000
Bolt
Loading…
↗
9
929950610000
Washer(6a1)
Loading…
↗
10
6A0427380094
Plate, Fitting
Loading…
↗
11
973130603000
Bolt
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
14
6E9427160000
Rubber, Seal 1
Loading…
↗
15
676427260000
Grommet 3
Loading…
↗
16
676427270000
Grommet 4
Loading…
↗
17
676263260000
Grommet
Loading…
↗
18
9048009M2100
Grommet (6e9)
Loading…
↗
19
9038706M4100
Coller (6e9)
Loading…
↗
20
902010641600
Washer, plate(663)
Loading…
↗
21
970800603000
Bolt(jf7)
Loading…
↗
23
953800660000
Nut(661)
Loading…
↗
24
6A1427920100
Mark (100:1)
Loading…
↗
25
6E9825750000
Engine stop switch assembly
Loading…
↗
26
682825560000
Lanyard, stop switch
Loading…
↗
