Yamaha Outboard Parts - Bottom Cowling - 40VMO (1997) | Flood Marine

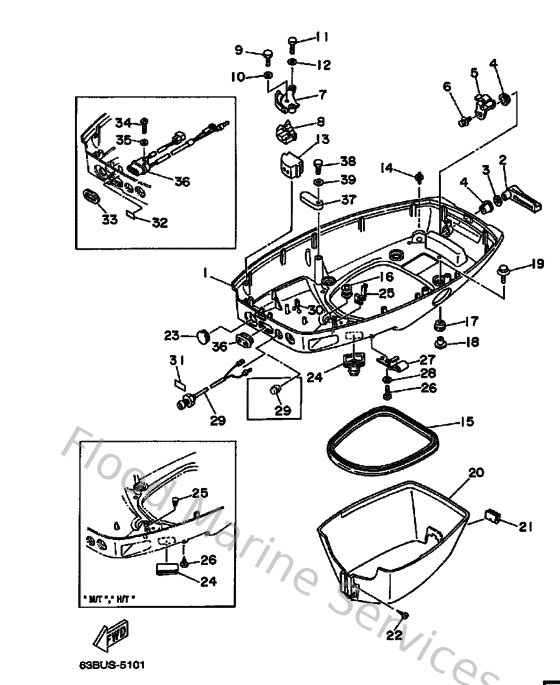

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
6H442711074D
Cowling, bottom 1
Loading…

↗
2
6H4428150000
Lever, clamp 1
Loading…

↗
3
902061205200
Washer, wave (666)
Loading…

↗
4
903861206900
Bush(666)
Loading…

↗
5
6H4428160000
Lever, clamp 2
Loading…

↗
6
970800601200
Bolt(gh1)
Loading…

↗
7
6H4485311194
Bracket, remote control 1
Loading…

↗
8
6H4485321194
Bracket, remote control 2
Loading…

↗
9
970950501600
Bolt(6a1)
Loading…

↗
10
929900560000
Washer, plain (646)
Loading…

↗
11
970800602000
Bolt(7u8)
Loading…

↗
12
929900660000
Washer, plain (646)
Loading…

↗
13
6H4427242000
Grommet
Loading…

↗
14
6E5443910000
Nipple, hose
Loading…

↗
15
6H4427160000
Rubber seal 1
Loading…

↗
16
6E5427240000
Grommet
Loading…

↗
17
9048009M2100
Grommet (6e9)
Loading…

↗
18
9038706M4100
Coller (6e9)
Loading…

↗
19
9011906M6100
Bolt, with washer
Loading…

↗
21
63D427170000
Rubber, seal 2
Loading…

↗
22
977806062500
Screw, tapping(65j)
Loading…

↗
23
676427260000
Grommet 3
Loading…

↗
24
688427261000
Grommet
Loading…

↗
25
703821190000
Cover, lead wire
Loading…

↗
26
9015706M0100
Screw (6e5)
Loading…

↗
27
6E5243670100
Clamp, fuel pipe 2
Loading…

↗
29
6J8854100000
Emergency signal light assembly
Loading…

↗
30
904651814700
Clamp
Loading…

↗
31
6H4854151000
Mark, signal lamp
Loading…

↗
33
6H4835890000
Gasket
Loading…

↗
34
978800601400
Screw, pan head(6h2)
Loading…

↗
36
63D843010000
Pilot light assembly 1
Loading…

↗
37
6E5825880000
Plate
Loading…

↗
38
970950602000
Bolt(7u8)
Loading…

↗
