Yamaha Outboard Parts - Bottom Cowling - 50DEMTO (1986) | Flood Marine

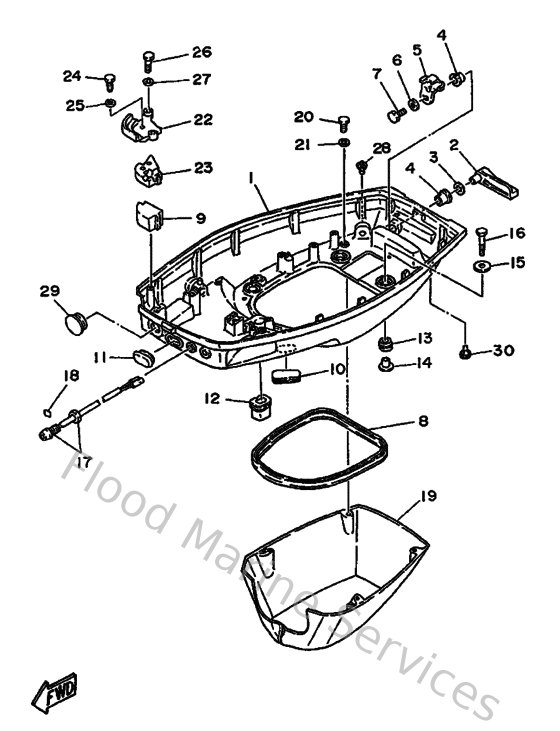

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
6H4428150000
Lever, clamp 1
Loading…

↗
3
902061205200
Washer, wave (666)
Loading…

↗
4
903861206900
Bush(666)
Loading…

↗
5
6H4428160000
Lever, clamp 2
Loading…

↗
6
902010606800
Washer,plate (6k8)
Loading…

↗
7
973130601000
Bolt
Loading…

↗
8
6H4427160000
Rubber seal 1
Loading…

↗
9
6H4427240000
Grommet
Loading…

↗
10
6H4427260000
Grommet
Loading…

↗
11
6H3427270000
Grommet
Loading…

↗
12
682427270000
Grommet
Loading…

↗
13
9048009M2100
Grommet (6e9)
Loading…

↗
14
9038706M4100
Coller (6e9)
Loading…

↗
15
902010641600
Washer, plate(663)
Loading…

↗
16
970800603000
Bolt(jf7)
Loading…

↗
17
6H4854110000
Overheat warning lamp
Loading…

↗
20
973130601600
Bolt, hexagon deep recess
Loading…

↗
21
929900660000
Washer, plain (646)
Loading…

↗
22
6H4485311094
Bracket, remote control 1
Loading…

↗
23
6H4485321194
Bracket, remote control 2
Loading…

↗
25
929900560000
Washer, plain (646)
Loading…

↗
26
973130602000
Bolt(7u8)
Loading…

↗
27
929030660000
Washer, plain (646)
Loading…

↗
28
6E5443910000
Nipple, hose
Loading…

↗
29
676427260000
Grommet 3
Loading…

↗
30
6H4427480000
Grommet
Loading…

↗
