50DEMTO (1987)
Bottom Cowling

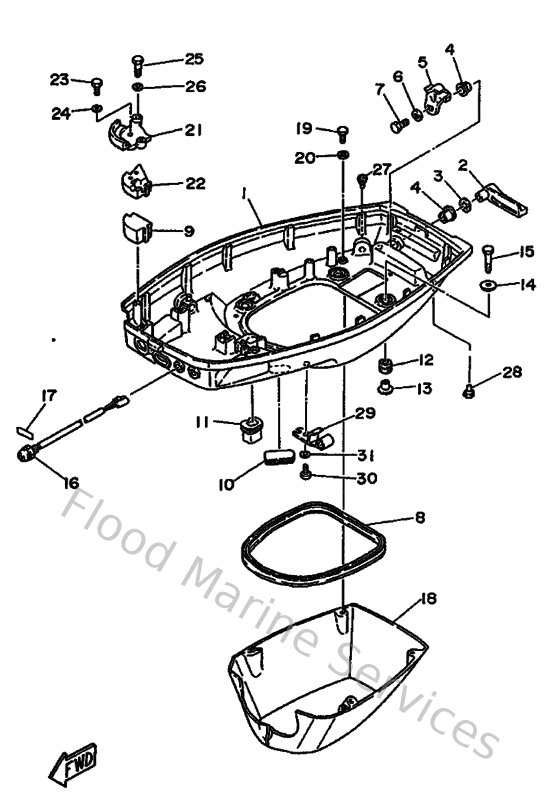

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H4428150000
Lever, clamp 1
Loading…
↗
3
902061205200
Washer, wave (666)
Loading…
↗
4
903861206900
Bush(666)
Loading…
↗
5
6H4428160000
Lever, clamp 2
Loading…
↗
6
9020106M0200
Washer,plate (6k8)
Loading…
↗
7
973130601000
Bolt
Loading…
↗
8
6H4427160000
Rubber seal 1
Loading…
↗
10
688427261000
Grommet
Loading…
↗
11
682427270000
Grommet
Loading…
↗
12
9048009M2100
Grommet (6e9)
Loading…
↗
14
902010641600
Washer, plate(663)
Loading…
↗
15
973130603000
Bolt
Loading…
↗
16
6J8854100000
Emergency signal light assembly
Loading…
↗
17
6H4854151000
Mark, signal lamp
Loading…
↗
19
970950601600
Bolt, hexagon deep recess
Loading…
↗
20
929030660000
Washer, plain (646)
Loading…
↗
21
6H4485311094
Bracket, remote control 1
Loading…
↗
22
6H4485321194
Bracket, remote control 2
Loading…
↗
24
929030560000
Washer, plain (646)
Loading…
↗
25
970800602000
Bolt(7u8)
Loading…
↗
27
6E5443910000
Nipple, hose
Loading…
↗
28
6H4427480000
Grommet
Loading…
↗
29
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
30
9015706M0100
Screw (6e5)
Loading…
↗
31
929900660000
Washer, plain (646)
Loading…
↗
