50DEMTO (1994)
Bottom Cowling

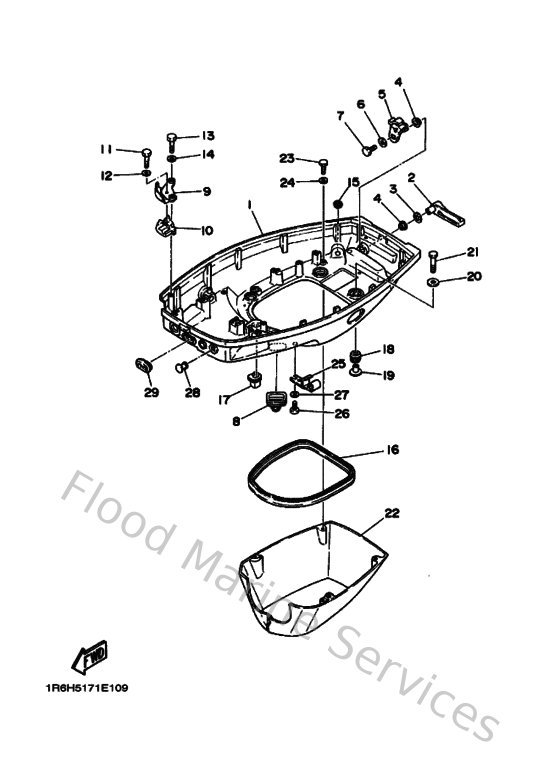

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H4428150000
Lever, clamp 1
Loading…
↗
3
902061205200
Washer, wave (666)
Loading…
↗
4
903861206900
Bush(666)
Loading…
↗
5
6H4428160000
Lever, clamp 2
Loading…
↗
6
9020106M0200
Washer,plate (6k8)
Loading…
↗
7
973130601000
Bolt
Loading…
↗
8
6H1427261000
Grommet
Loading…
↗
9
6H4485311194
Bracket, remote control 1
Loading…
↗
10
6H4485321194
Bracket, remote control 2
Loading…
↗
11
973950501600
Bolt(6a1)
Loading…
↗
12
929900560000
Washer, plain (646)
Loading…
↗
13
973950602000
Bolt(7u8)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
6E5443910000
Nipple, hose
Loading…
↗
16
6H4427160000
Rubber seal 1
Loading…
↗
17
682427270000
Grommet
Loading…
↗
18
9048009M2100
Grommet (6e9)
Loading…
↗
19
9038706M4100
Coller (6e9)
Loading…
↗
20
902010641600
Washer, plate(663)
Loading…
↗
21
973130603000
Bolt
Loading…
↗
23
970950601600
Bolt, hexagon deep recess
Loading…
↗
25
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
26
9015706M0100
Screw (6e5)
Loading…
↗
28
6G1427480000
Grommet
Loading…
↗
29
6H3427270000
Grommet
Loading…
↗
