Yamaha Outboard Parts - Bottom Cowling - 50HM (1995) | Flood Marine

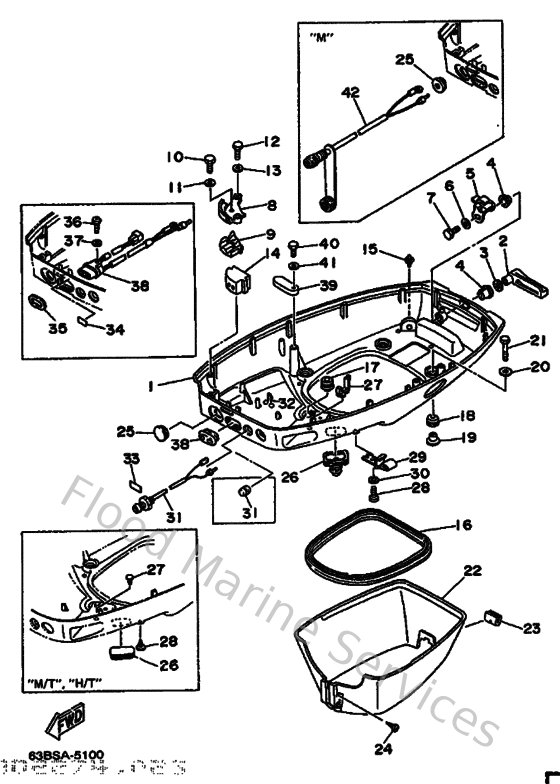

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
6H442711064D
Cowling, bottom 1
Loading…

↗
2
6H4428150000
Lever, clamp 1
Loading…

↗
3
902061205200
Washer, wave (666)
Loading…

↗
4
903861206900
Bush(666)
Loading…

↗
5
6H4428160000
Lever, clamp 2
Loading…

↗
6
9020106M0200
Washer,plate (6k8)
Loading…

↗
7
973130601000
Bolt
Loading…

↗
8
6H4485311094
Bracket, remote control 1
Loading…

↗
9
6H4485321194
Bracket, remote control 2
Loading…

↗
10
970950501600
Bolt(6a1)
Loading…

↗
11
929900560000
Washer, plain (646)
Loading…

↗
12
970950602000
Bolt(7u8)
Loading…

↗
13
929900660000
Washer, plain (646)
Loading…

↗
14
6H4427242000
Grommet
Loading…

↗
15
6E5443910000
Nipple, hose
Loading…

↗
16
6H4427240000
Grommet
Loading…

↗
17
6E5427240000
Grommet
Loading…

↗
18
9048009M2100
Grommet (6e9)
Loading…

↗
19
9038706M4100
Coller (6e9)
Loading…

↗
20
902010641600
Washer, plate(663)
Loading…

↗
21
970800603000
Bolt(jf7)
Loading…

↗
22
63D42741004D
Apron
Loading…

↗
23
63D427170000
Rubber, seal 2
Loading…

↗
24
977806052500
Screw, tapping(65j)
Loading…

↗
25
676427260000
Grommet 3
Loading…

↗
26
6H4427260000
Grommet
Loading…

↗
27
9046415M0800
Clamp (6h1)
Loading…

↗
28
9015706M0100
Screw (6e5)
Loading…

↗
29
6E5243670100
Clamp, fuel pipe 2
Loading…

↗
31
6J8854100000
Emergency signal light assembly
Loading…

↗
32
904651814700
Clamp
Loading…

↗
33
6H4854151000
Mark, signal lamp
Loading…

↗
34
63D843420000
Seat, emblem
Loading…

↗
35
6H4835890000
Gasket
Loading…

↗
36
978800601400
Screw, pan head(6h2)
Loading…

↗
38
63D843010000
Pilot light assembly 1
Loading…

↗
39
6E5825880000
Plate
Loading…

↗
