55BM (1996)
Bottom Cowling

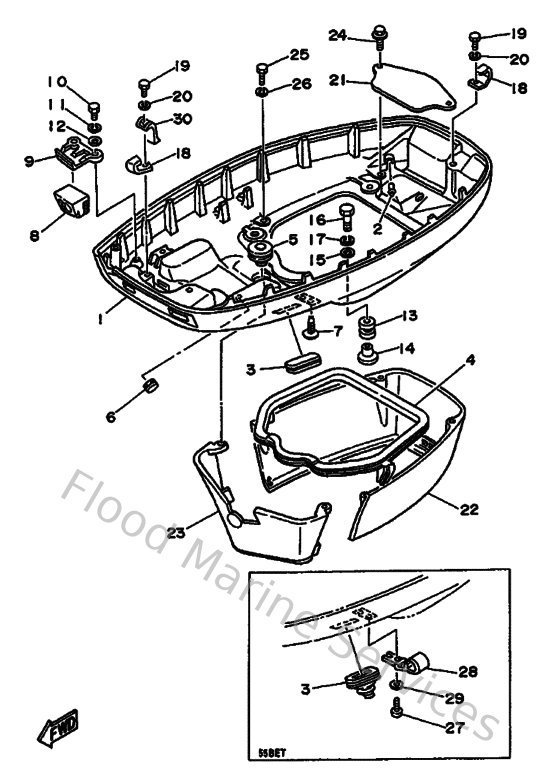

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
69742711014D
Cowling, Bottom
Loading…
↗
2
663243760000
Pipe, joint 1
Loading…
↗
3
6H4427260000
Grommet
Loading…
↗
4
663427160100
Sea 1
Loading…
↗
5
663427240000
Grommet
Loading…
↗
6
904801200400
Grommet(661)
Loading…
↗
7
9033805M0300
Plug (6h1)
Loading…
↗
9
970950601600
Bolt, hexagon deep recess
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
9048009M1200
Grommet (6a0)
Loading…
↗
14
9038706M0300
Collar (676)
Loading…
↗
15
902010641600
Washer, plate(663)
Loading…
↗
16
970950603000
Bolt(jf7)
Loading…
↗
18
663427440300
Stay
Loading…
↗
19
973950601400
Bolt(gj3)
Loading…
↗
21
663427230194
Cover, bottom
Loading…
↗
22
66342771014D
Apron
Loading…
↗
23
66342771024D
Apron
Loading…
↗
24
975950642000
Bolt(7u8)
Loading…
↗
25
970950602500
Bolt
Loading…
↗
27
9015706M0100
Screw (6e5)
Loading…
↗
28
6E5243671000
Clamp, fuel pipe 2
Loading…
↗
30
663825940300
Clamp
Loading…
↗
