55BM (1998)
Bottom Cowling

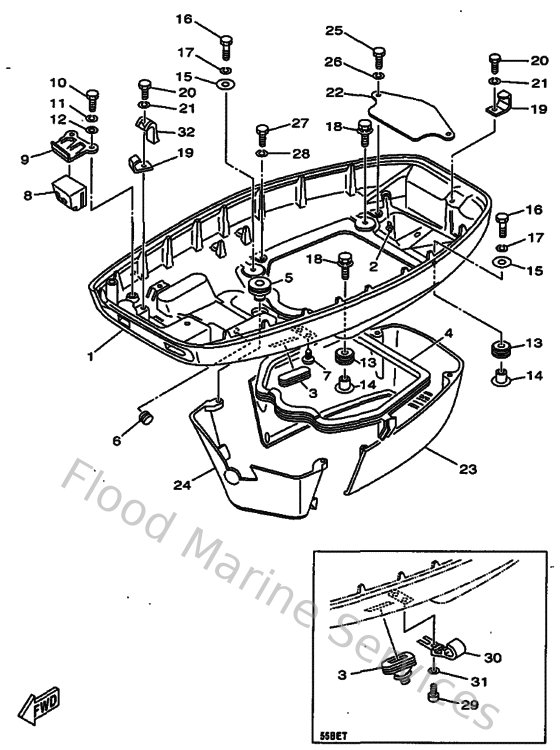

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
69742711024D
Cowling, bottom
Loading…
↗
2
663243760000
Pipe, joint 1
Loading…
↗
3
6H4427260000
Grommet
Loading…
↗
4
663427160100
Sea 1
Loading…
↗
5
663427240000
Grommet
Loading…
↗
6
904801200400
Grommet(661)
Loading…
↗
7
9033805M0300
Plug (6h1)
Loading…
↗
8
663427250100
Grommet
Loading…
↗
9
663427380394
Plate, fitting
Loading…
↗
10
970950601600
Bolt, hexagon deep recess
Loading…
↗
11
929950610000
Washer(6a1)
Loading…
↗
12
929900660000
Washer, plain (646)
Loading…
↗
13
9048009M1200
Grommet (6a0)
Loading…
↗
14
9038706M0300
Collar (676)
Loading…
↗
15
902010641600
Washer, plate(663)
Loading…
↗
16
970950603000
Bolt(jf7)
Loading…
↗
18
9011906M0800
Bolt, with washer
Loading…
↗
19
663427440200
Stay
Loading…
↗
20
970950601400
Bolt(gj3)
Loading…
↗
22
663427230194
Cover, bottom
Loading…
↗
23
66342741004D
Apron
Loading…
↗
24
66342771024D
Apron
Loading…
↗
25
970800602000
Bolt(7u8)
Loading…
↗
27
970950602500
Bolt
Loading…
↗
29
9015706M0100
Screw (6e5)
Loading…
↗
30
6E5243671000
Clamp, fuel pipe 2
Loading…
↗
32
663825940300
Clamp
Loading…
↗
