5CMH (1994)
Bottom Cowling

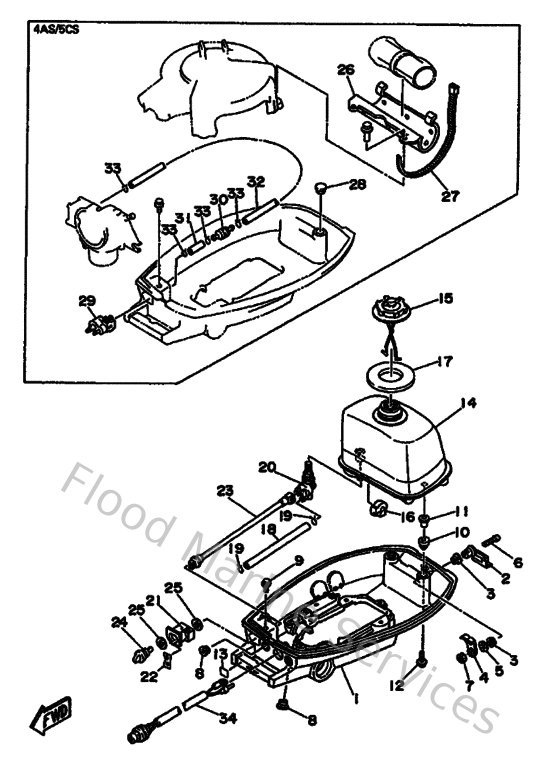

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6E042711044D
Cowling, Bottom
Loading…
↗
2
6E042815004D
Lever, clamp
Loading…
↗
3
903861206900
Bush(666)
Loading…
↗
4
6E0428160000
Lever, clamp
Loading…
↗
5
902061205200
Washer, wave (666)
Loading…
↗
6
978950603000
Screw, pan head(6e0)
Loading…
↗
7
953800670000
Nut
Loading…
↗
8
9048014M1400
Grommet (6e0)
Loading…
↗
9
958800602000
Bolt, flange(jk3)
Loading…
↗
10
6E0241820000
Damper, locating 2
Loading…
↗
11
6E0425420000
Pipe 1
Loading…
↗
12
958950602500
Bolt, flange deep recess
Loading…
↗
13
6A1427920100
Mark (100:1)
Loading…
↗
14
6E024110004D
Fuel Tank Comp
Loading…
↗
15
6E0246100200
Cap assembly
Loading…
↗
16
6E0241810000
Damper, locating 1
Loading…
↗
17
6E3246410000
Gasket, cap
Loading…
↗
18
9044509M3700
Hose (l1500)
Loading…
↗
19
904670800400
Clip, pipe 6162435600
Loading…
↗
20
6E0245000100
Fuel cock assembly 1
Loading…
↗
21
6E0245710000
Bushing
Loading…
↗
23
6E0245720000
Shaft, fuel change
Loading…
↗
24
6E0245750100
Lever, fuel change
Loading…
↗
25
9020212M1700
Washer, plate (6e0)
Loading…
↗
26
6E1426430100
Plate, Clamp
Loading…
↗
27
6E1426940000
Band
Loading…
↗
28
6E1241820000
Damper, Locating 2
Loading…
↗
29
6G1243040200
Fuel pipe joint comp. 1
Loading…
↗
30
646242510200
Strainer 1
Loading…
↗
31
90445094K700
Hose (l180)
Loading…
↗
32
688243130000
Pipe, fuel 2
Loading…
↗
34
6E0825500000
Stop switch assembly
Loading…
↗
