5CMH (1995)
Bottom Cowling

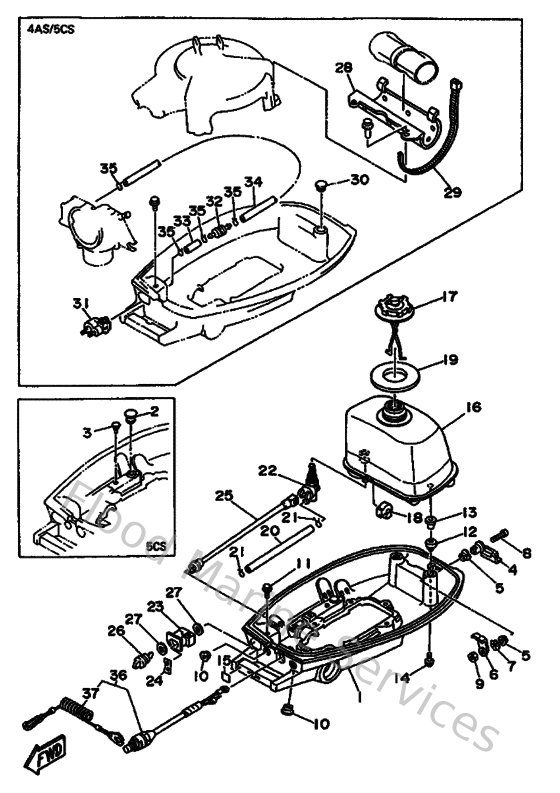

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6E042711054D
Cowling, bottom
Loading…
↗
3
9048006M1900
Grommet (6e3)
Loading…
↗
4
6E042815004D
Lever, clamp
Loading…
↗
5
903861206900
Bush(666)
Loading…
↗
6
6E0428160000
Lever, clamp
Loading…
↗
7
902061205200
Washer, wave (666)
Loading…
↗
8
978950603000
Screw, pan head(6e0)
Loading…
↗
9
953800670000
Nut
Loading…
↗
10
9048014M1400
Grommet (6e0)
Loading…
↗
11
958800602000
Bolt, flange(jk3)
Loading…
↗
12
6E0241820000
Damper, locating 2
Loading…
↗
13
6E0425420000
Pipe 1
Loading…
↗
14
958950602500
Bolt, flange deep recess
Loading…
↗
15
6A1427920100
Mark (100:1)
Loading…
↗
16
6E024110014D
Fuel Tank Comp
Loading…
↗
17
6E0246100200
Cap assembly
Loading…
↗
18
6E0241810000
Damper, locating 1
Loading…
↗
19
6E0246410000
Gasket, cap
Loading…
↗
20
90445090F600
Hose (l1500)
Loading…
↗
21
904670800400
Clip, pipe 6162435600
Loading…
↗
22
6E0245000000
Fuel cock assembly 1
Loading…
↗
23
6E0245710000
Bushing
Loading…
↗
25
6E0245720000
Shaft, fuel change
Loading…
↗
26
6E0245750100
Lever, fuel change
Loading…
↗
27
9020212M1700
Washer, plate (6e0)
Loading…
↗
28
6E1426430100
Plate, Clamp
Loading…
↗
29
6E1426940000
Band
Loading…
↗
30
6E1241820000
Damper, Locating 2
Loading…
↗
31
6G1243041000
Fuel pipe joint comp. 1
Loading…
↗
32
646242510200
Strainer 1
Loading…
↗
33
904450905700
Hose (l180)
Loading…
↗
34
6A4243120000
Pipe, fuel 2
Loading…
↗
35
904670800700
Clip 101235600
Loading…
↗
36
6E0825750000
Engine stop switch assembly
Loading…
↗
37
682825560000
Lanyard, stop switch
Loading…
↗
