Yamaha Outboard Parts - Bottom Cowling - 60FETO (1987) | Flood Marine

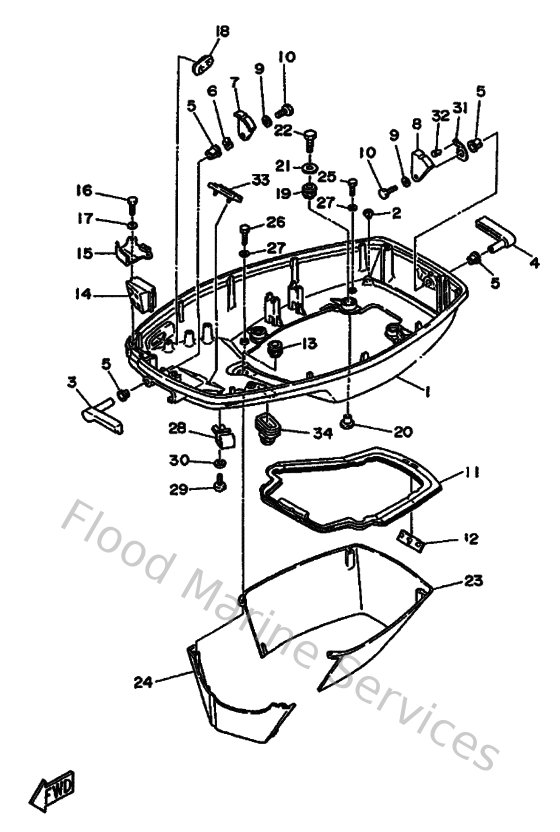

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
6H3443910000
Nipple, hose
Loading…

↗
5
9038613M3800
Bushing (697)
Loading…

↗
6
9020613M1000
Washer, wave (6e5)
Loading…

↗
7
6H3428160000
Lever, clamp 2
Loading…

↗
8
6H3428180000
Lever, clamp 4
Loading…

↗
9
902010606800
Washer,plate (6k8)
Loading…

↗
10
970130601200
Bolt(gh1)
Loading…

↗
12
6K5427170000
Rubber, seal 2
Loading…

↗
13
6E5427240000
Grommet
Loading…

↗
14
6H3427251000
Grommet
Loading…

↗
15
6H34273801CA
Plate, fitting
Loading…

↗
16
973130601600
Bolt, hexagon deep recess
Loading…

↗
17
929900660000
Washer, plain (646)
Loading…

↗
18
6H3427270000
Grommet
Loading…

↗
19
9048009M1200
Grommet (6a0)
Loading…

↗
20
9038706M6900
Collar (688)
Loading…

↗
21
902010641600
Washer, plate(663)
Loading…

↗
22
970800603000
Bolt(jf7)
Loading…

↗
25
973130602000
Bolt(7u8)
Loading…

↗
26
9010106M2700
Bolt
Loading…

↗
27
929030660000
Washer, plain (646)
Loading…

↗
28
6E5243670100
Clamp, fuel pipe 2
Loading…

↗
29
9015706M0100
Screw (6e5)
Loading…

↗
31
6H3428130000
Spring, clamp lever
Loading…

↗
32
9026904M0300
Rivet (6h3)
Loading…

↗
33
6H3427680000
Damper
Loading…

↗
34
688427261000
Grommet
Loading…

↗
