60FETO (1997)
Bottom Cowling

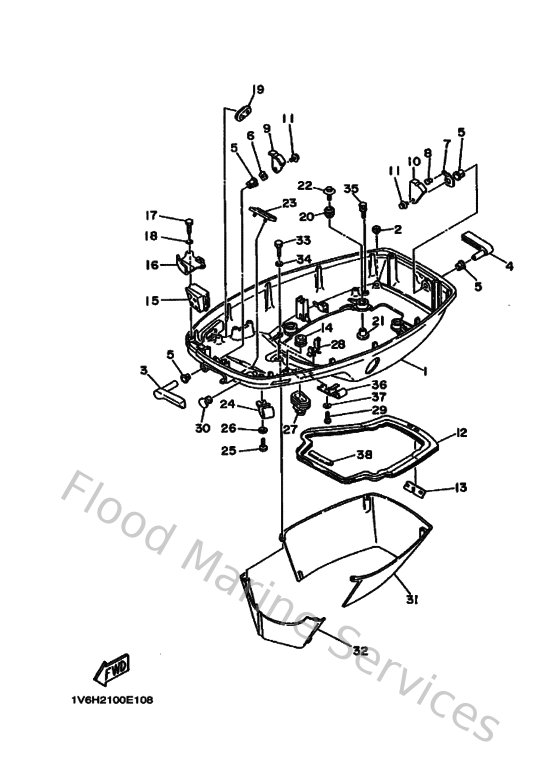

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H3443910100
Nipple, hose
Loading…
↗
3
6H342815014D
Lever, clamp
Loading…
↗
4
6H342817018D
Lever, clamp
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
6H3428130000
Spring, clamp lever
Loading…
↗
8
9026904M0300
Rivet (6h3)
Loading…
↗
9
6H3428160000
Lever, clamp 2
Loading…
↗
10
6H3428180000
Lever, clamp 4
Loading…
↗
11
9011906M0900
Bolt, with washer
Loading…
↗
12
6H3427160200
Rubber, seal 1
Loading…
↗
13
6K5427170000
Rubber, seal 2
Loading…
↗
14
6E5427240000
Grommet
Loading…
↗
15
6H2427250100
Grommet
Loading…
↗
16
6H34273801CA
Plate, fitting
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
6H3427270000
Grommet
Loading…
↗
20
9048009M1200
Grommet (6a0)
Loading…
↗
21
9038706M6900
Collar (688)
Loading…
↗
22
9011906M6100
Bolt, with washer
Loading…
↗
23
6H3427680000
Damper
Loading…
↗
24
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
25
9015706M0100
Screw (6e5)
Loading…
↗
27
688427261000
Grommet
Loading…
↗
28
9046415M0800
Clamp (6h1)
Loading…
↗
30
6G1427480000
Grommet
Loading…
↗
31
6H342741014D
Apron
Loading…
↗
32
6H342771014D
Apron
Loading…
↗
33
970950602500
Bolt
Loading…
↗
35
970800602000
Bolt(7u8)
Loading…
↗
38
6H3427180000
Rubber, seal 3
Loading…
↗
