70BETO (1986)
Bottom Cowling

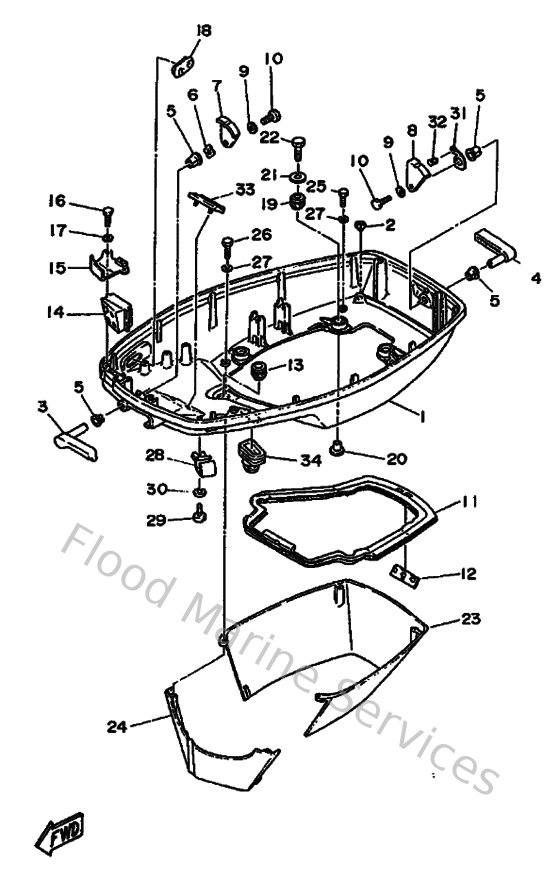

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H3443910000
Nipple, hose
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
6H3428160000
Lever, clamp 2
Loading…
↗
8
6H3428180000
Lever, clamp 4
Loading…
↗
9
902010606800
Washer,plate (6k8)
Loading…
↗
10
970130601200
Bolt(gh1)
Loading…
↗
12
6H3427170000
Rubber, seal 2
Loading…
↗
13
6E5427240000
Grommet
Loading…
↗
14
6H3427250000
Grommet
Loading…
↗
15
6H342738009M
Plate, fitting
Loading…
↗
16
973130601600
Bolt, hexagon deep recess
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
6H3427270000
Grommet
Loading…
↗
19
9048009M1200
Grommet (6a0)
Loading…
↗
20
9038706M6900
Collar (688)
Loading…
↗
21
902010641600
Washer, plate(663)
Loading…
↗
22
970800603000
Bolt(jf7)
Loading…
↗
25
973130602000
Bolt(7u8)
Loading…
↗
26
9010106M2700
Bolt
Loading…
↗
27
929030660000
Washer, plain (646)
Loading…
↗
28
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
29
9015706M0100
Screw (6e5)
Loading…
↗
31
6H3428130000
Spring, clamp lever
Loading…
↗
32
9026904M0300
Rivet (6h3)
Loading…
↗
33
6H3427680000
Damper
Loading…
↗
34
688427261000
Grommet
Loading…
↗
