80AETOL (1988)
Bottom Cowling

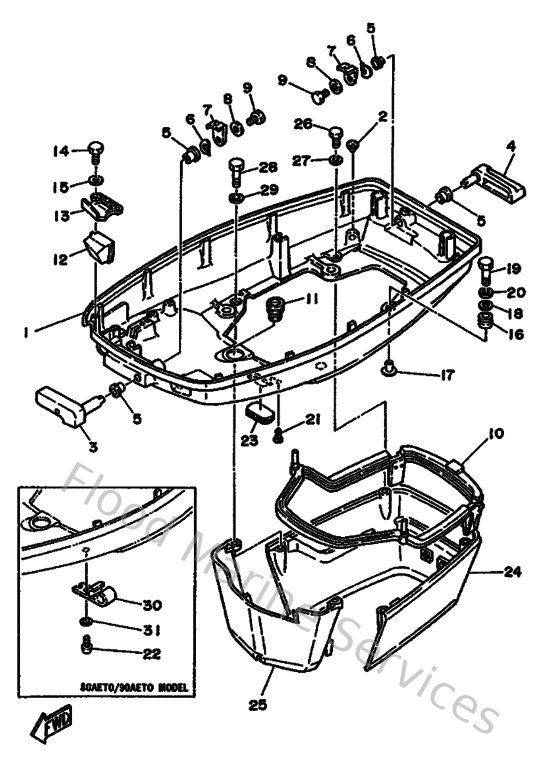

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H3443910000
Nipple, hose
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
902061301900
Washer, wave 6264283200
Loading…
↗
7
688428160000
Lever, clamp 2
Loading…
↗
8
9020106M0200
Washer,plate (6k8)
Loading…
↗
9
973130601200
Bolt(gh1)
Loading…
↗
10
688427160200
Rubber seal 1
Loading…
↗
11
663427240000
Grommet
Loading…
↗
12
688427250100
Grommet
Loading…
↗
13
68842738018D
Plate, fitting
Loading…
↗
14
973130601600
Bolt, hexagon deep recess
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
9048009M1200
Grommet (6a0)
Loading…
↗
17
9038706M6900
Collar (688)
Loading…
↗
18
902010641600
Washer, plate(663)
Loading…
↗
19
973130603000
Bolt
Loading…
↗
20
929900610000
Washer(6a1)
Loading…
↗
21
9033805M0300
Plug (6h1)
Loading…
↗
22
9015706M0100
Screw (6e5)
Loading…
↗
23
6H4427260000
Grommet
Loading…
↗
24
6884274101EJ
Plate Fitting
Loading…
↗
26
973130602000
Bolt(7u8)
Loading…
↗
28
970800603000
Bolt(jf7)
Loading…
↗
30
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
