Yamaha Outboard Parts - Bottom Cowling - 80AETOL (1992) | Flood Marine

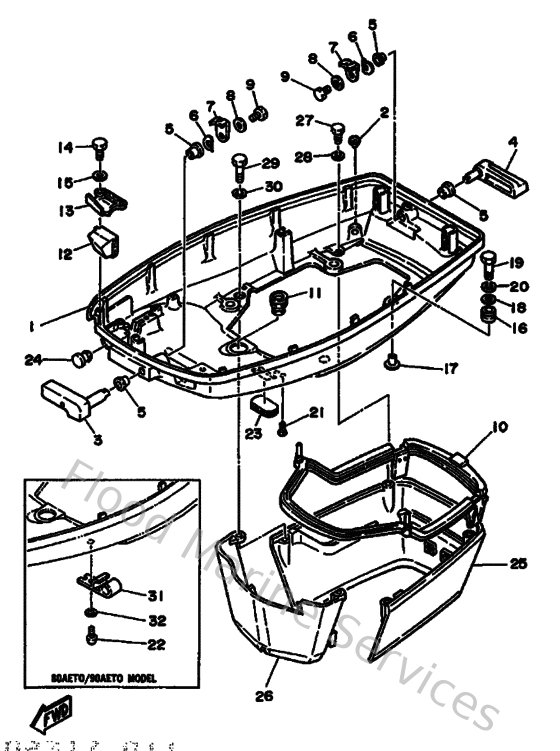

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
6H3443910100
Nipple, hose
Loading…

↗
5
9038613M3800
Bushing (697)
Loading…

↗
6
902061301900
Washer, wave 6264283200
Loading…

↗
7
688428160000
Lever, clamp 2
Loading…

↗
8
9020106M0200
Washer,plate (6k8)
Loading…

↗
9
970130601200
Bolt(gh1)
Loading…

↗
10
688427160200
Rubber seal 1
Loading…

↗
11
663427240000
Grommet
Loading…

↗
12
688427251000
Grommet
Loading…

↗
13
688427380094
Plate, fitting
Loading…

↗
14
973950601600
Bolt, hexagon deep recess
Loading…

↗
15
929900660000
Washer, plain (646)
Loading…

↗
16
9048009M1200
Grommet (6a0)
Loading…

↗
17
9038706M6900
Collar (688)
Loading…

↗
18
902010641600
Washer, plate(663)
Loading…

↗
19
970800603000
Bolt(jf7)
Loading…

↗
20
929900610000
Washer(6a1)
Loading…

↗
21
9033805M0300
Plug (6h1)
Loading…

↗
22
9015706M0100
Screw (6e5)
Loading…

↗
23
6H1427261000
Grommet
Loading…

↗
24
6G1427480000
Grommet
Loading…

↗
25
6884274100EJ
Apron 1
Loading…

↗
27
970800602000
Bolt(7u8)
Loading…

↗
29
973950603000
Bolt(jf7)
Loading…

↗
31
6E5243670100
Clamp, fuel pipe 2
Loading…

↗
