8CEM (1986)
Bottom Cowling

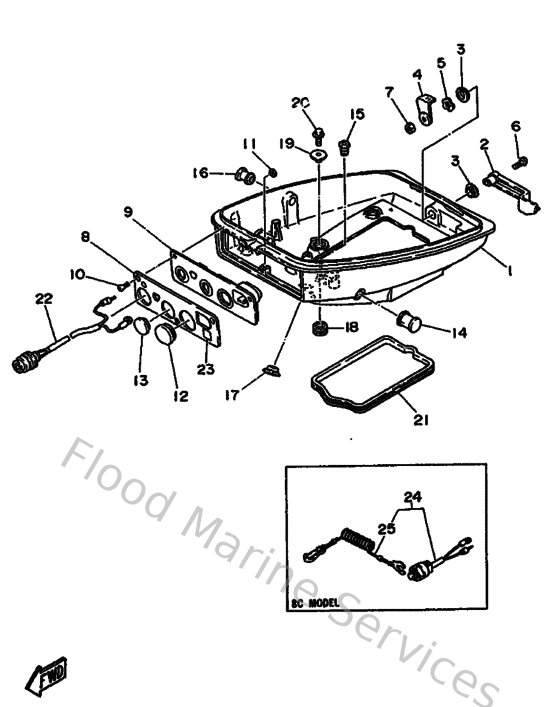

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
3
9038612M4500
Bushing (6g1)
Loading…
↗
4
6E0428160000
Lever, clamp
Loading…
↗
5
902061205200
Washer, wave (666)
Loading…
↗
6
978900603000
Screw, pan head(6e0)
Loading…
↗
7
953800670000
Nut
Loading…
↗
8
6G1427190000
Pannel front lower
Loading…
↗
9
6G1427670000
Bracket 3
Loading…
↗
10
9014905M0200
Screw (6g1)
Loading…
↗
11
953800560000
Nut, hexagon (663)
Loading…
↗
12
6G1427240000
Grommet
Loading…
↗
13
6G1427250000
Grommet
Loading…
↗
14
6G1427260000
Grommet 3
Loading…
↗
15
6G1427270000
Grommet
Loading…
↗
16
6G1427480000
Grommet
Loading…
↗
17
6G1263260000
Grommet
Loading…
↗
18
9048015M3100
Grommet (6g1)
Loading…
↗
19
9038706M5200
Collar (6g1)
Loading…
↗
20
9010506M1500
Bolt (6e0)
Loading…
↗
21
6G1427160000
Rubber, seal 1
Loading…
↗
22
6A0825500100
Stop switch assembly
Loading…
↗
23
6A1427920100
Mark (100:1)
Loading…
↗
24
6E9825750000
Engine stop switch assembly
Loading…
↗
25
682825560000
Lanyard, stop switch
Loading…
↗
