9.9DMH (1989)
Bottom Cowling

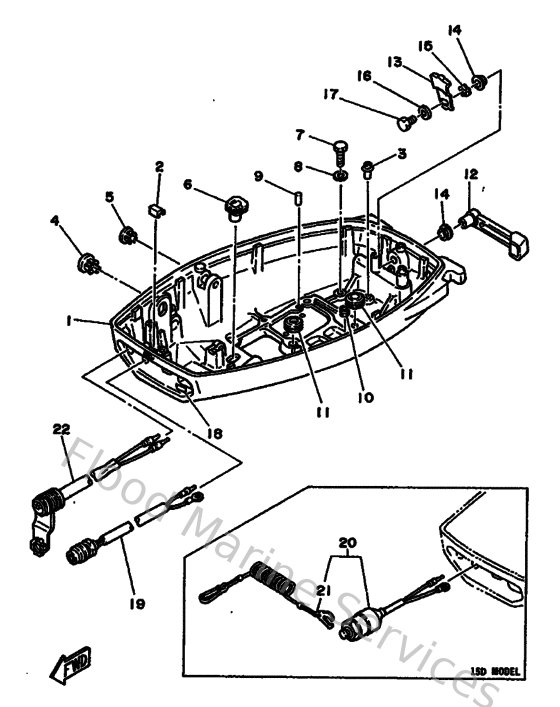

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
3
650243780000
Pipe, joint 2
Loading…
↗
5
682427260000
Grommet 3
Loading…
↗
6
682427270000
Grommet
Loading…
↗
7
970800602000
Bolt(7u8)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
936061201900
Pin, dowel (614)
Loading…
↗
10
682443660000
Water seal 2
Loading…
↗
11
682443670000
Rubber water seal 3
Loading…
↗
13
6E7428160000
Lever, clamp 2
Loading…
↗
14
903861206900
Bush(666)
Loading…
↗
15
902061205200
Washer, wave (666)
Loading…
↗
16
902010606800
Washer,plate (6k8)
Loading…
↗
17
973130601000
Bolt
Loading…
↗
18
6A1427920100
Mark (100:1)
Loading…
↗
19
6A0825500100
Stop switch assembly
Loading…
↗
20
6E9825750000
Engine stop switch assembly
Loading…
↗
21
682825560000
Lanyard, stop switch
Loading…
↗
22
682843810000
2p concent 1
Loading…
↗
