E60HELH (2000)
Bottom Cowling

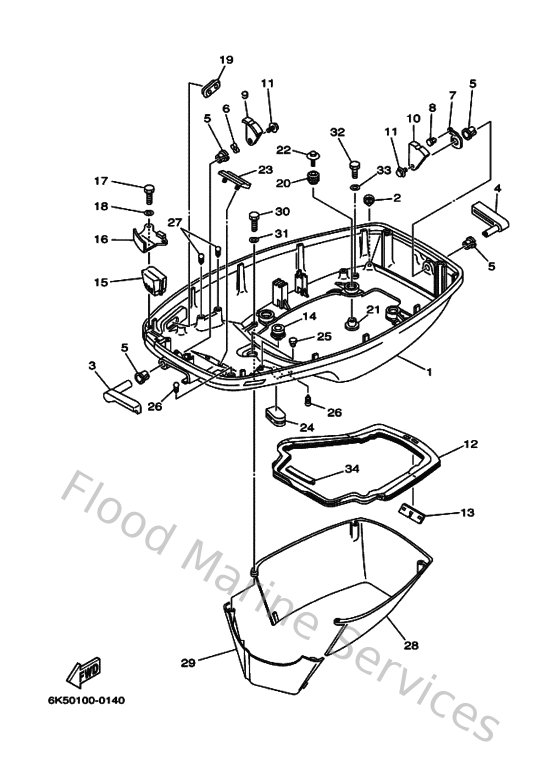

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
6H342711144D
Cowling, bottom 1
Loading…
↗
2
6H3443910100
Nipple, hose
Loading…
↗
3
6H342815018D
Lever, clamp
Loading…
↗
4
6H342817014D
Lever, clamp
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
6H3428130000
Spring, clamp lever
Loading…
↗
8
9026904M0300
Rivet (6h3)
Loading…
↗
9
6H3428160000
Lever, clamp 2
Loading…
↗
10
6H3428180000
Lever, clamp 4
Loading…
↗
11
9011906M0900
Bolt, with washer
Loading…
↗
12
6H3427160200
Rubber, seal 1
Loading…
↗
13
6K5427170000
Rubber, seal 2
Loading…
↗
14
6E5427240000
Grommet
Loading…
↗
15
6K5427250000
Grommet
Loading…
↗
16
6H342738015B
Plate, fitting
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
6H3427270000
Grommet
Loading…
↗
20
9048009M1200
Grommet (6a0)
Loading…
↗
21
9038706M6900
Collar (688)
Loading…
↗
22
9011906M0800
Bolt, with washer
Loading…
↗
23
6H3427680000
Damper
Loading…
↗
24
6H4427260000
Grommet
Loading…
↗
25
703821190000
Cover, lead wire
Loading…
↗
26
9033805M0300
Plug (6h1)
Loading…
↗
28
6H342741014D
Apron
Loading…
↗
29
6H342771014D
Apron
Loading…
↗
30
970950602500
Bolt
Loading…
↗
31
929950660000
Washer, plain (646)
Loading…
↗
32
970800602000
Bolt(7u8)
Loading…
↗
34
6H3427180000
Rubber, seal 3
Loading…
↗
