F15AEP (2000)
Bottom Cowling

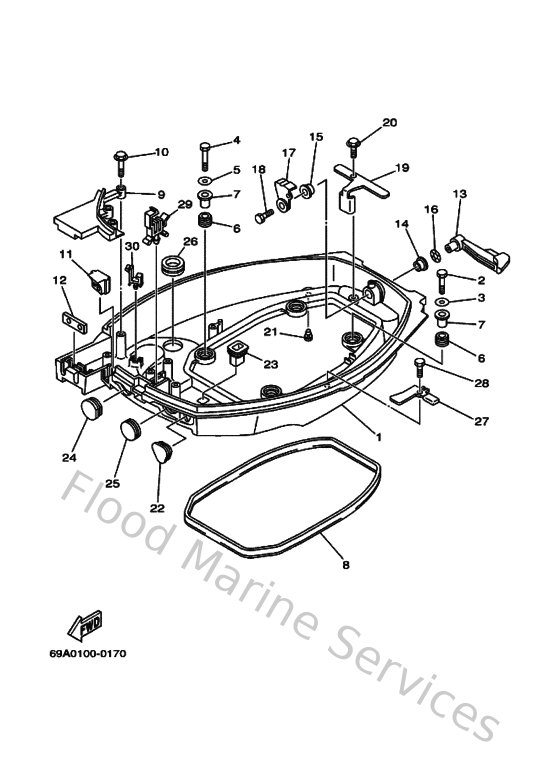

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
970950603500
Bolt(j52)
Loading…
↗
3
929950660000
Washer, plain (646)
Loading…
↗
4
970950602500
Bolt
Loading…
↗
6
9048015M3100
Grommet (6g1)
Loading…
↗
7
9038706M5200
Collar (6g1)
Loading…
↗
8
66M427160000
Rubber, seal 1
Loading…
↗
9
66M42738004D
Plate, fitting
Loading…
↗
10
9010906M8200
Bolt
Loading…
↗
11
66M427252000
Grommet
Loading…
↗
12
62Y427270000
Grommet
Loading…
↗
13
66M42815004D
Lever, clamp 1
Loading…
↗
14
9038612M3700
Bushing (6f5)
Loading…
↗
15
9038612MA200
Bush
Loading…
↗
16
902061205200
Washer, wave (666)
Loading…
↗
17
6L2428160000
Lever, clamp
Loading…
↗
18
970950601200
Bolt(gh1)
Loading…
↗
19
66M427660000
Bracket 2
Loading…
↗
20
9010906M8600
Bolt
Loading…
↗
21
6H3443910100
Nipple, hose
Loading…
↗
22
68U427270000
Grommet
Loading…
↗
23
65W263261000
Grommet
Loading…
↗
24
682427270000
Grommet
Loading…
↗
25
682427240000
Grommet
Loading…
↗
26
65W427261000
Grommet
Loading…
↗
27
66M427430000
Bracket
Loading…
↗
29
9046525M9500
Clamp
Loading…
↗
30
9046409M1300
Clamp (6h1)
Loading…
↗
