Yamaha Outboard Parts - Bottom Cowling - F20AM (1998) | Flood Marine
New Search
Parts
New Outboards
Home
F20AM (1998)
Bottom Cowling

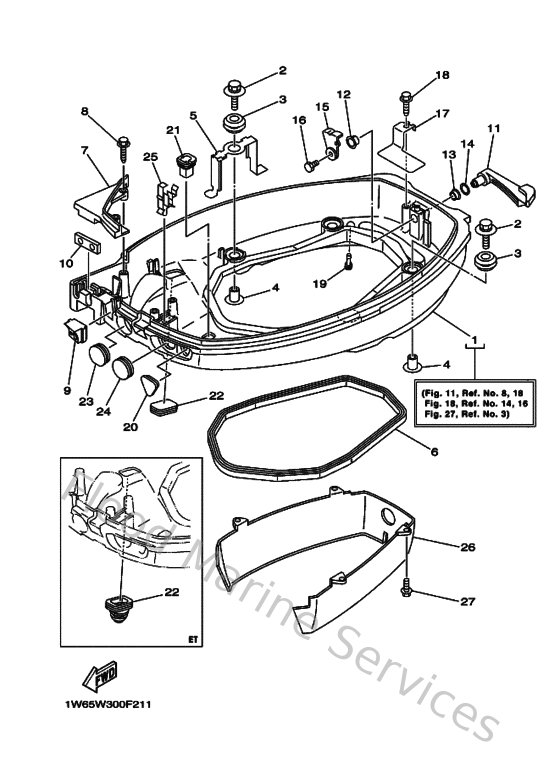

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
65W42710004D
Bottom Cowling Assembly
Loading…
↗
2
9011906M0800
Bolt, with washer
Loading…
↗
3
9048009M1200
Grommet (6a0)
Loading…
↗
4
9038706M6900
Collar (688)
Loading…
↗
6
62Y427160000
Rubber seal 1
Loading…
↗
7
65W42738004D
Plate, Fitting
Loading…
↗
8
9010906M8200
Bolt
Loading…
↗
9
65W427252100
Grommet
Loading…
↗
10
62Y427270000
Grommet
Loading…
↗
11
65W42815004D
Lever, Clamp
Loading…
↗
12
9038612M3700
Bushing (6f5)
Loading…
↗
13
9038612MA200
Bush
Loading…
↗
14
902061205200
Washer, wave (666)
Loading…
↗
15
6L2428160000
Lever, clamp
Loading…
↗
16
970800601200
Bolt(gh1)
Loading…
↗
17
65W427660000
Bracket
Loading…
↗
18
9010906M8600
Bolt
Loading…
↗
19
6H3443910100
Nipple, hose
Loading…
↗
20
65W263261000
Grommet
Loading…
↗
21
682427270000
Grommet
Loading…
↗
22
6H4427260000
Grommet
Loading…
↗
23
6G1427250000
Grommet
Loading…
↗
24
65W427261000
Grommet
Loading…
↗
25
9046525M5700
Clamp(63v)
Loading…
↗
27
975950651800
Bolt (fj0)
Loading…
↗
