F45A (2000)
Bottom Cowling

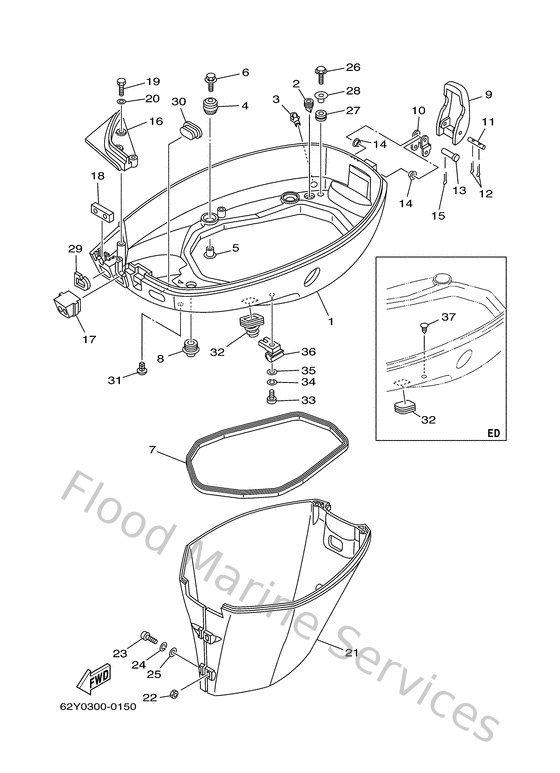

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
62Y42711044D
Cowling, bottom 1
Loading…
↗
2
65W427170000
Rubber, seal 2
Loading…
↗
3
6H3443910100
Nipple, hose
Loading…
↗
4
9048009M1200
Grommet (6a0)
Loading…
↗
5
9038706M6900
Collar (688)
Loading…
↗
6
9011906M0800
Bolt, with washer
Loading…
↗
7
62Y427160000
Rubber seal 1
Loading…
↗
8
6E5427240000
Grommet
Loading…
↗
9
62Y42828008D
Plate, clamp
Loading…
↗
10
62Y428150000
Lever, clamp
Loading…
↗
11
9024905M3000
Pin(62y)
Loading…
↗
12
914901601000
Pin, cotter
Loading…
↗
13
9024005M1900
Pin, clevis(62y)
Loading…
↗
14
903860500200
Bush 626412910000
Loading…
↗
16
62Y42738015B
Plate, fitting
Loading…
↗
17
62Y427250000
Grommet
Loading…
↗
18
62Y427270000
Grommet
Loading…
↗
19
970950602000
Bolt(7u8)
Loading…
↗
20
929950660000
Washer, plain (646)
Loading…
↗
21
62Y42741008D
Apron
Loading…
↗
22
953800660000
Nut(661)
Loading…
↗
23
978800602500
Screw, pan head(6b0)
Loading…
↗
24
929950610000
Washer(6a1)
Loading…
↗
25
929900660000
Washer, plain (646)
Loading…
↗
26
958950601600
Bolt, flange deep recess
Loading…
↗
27
9048013M2400
Grommet (6e9)
Loading…
↗
28
9038706M4000
Collar
Loading…
↗
29
61N243290000
Seal
Loading…
↗
30
6H3427270000
Grommet
Loading…
↗
31
9033805M0300
Plug (6h1)
Loading…
↗
32
6H4427260000
Grommet
Loading…
↗
