F4AMH (1998)
Bottom Cowling

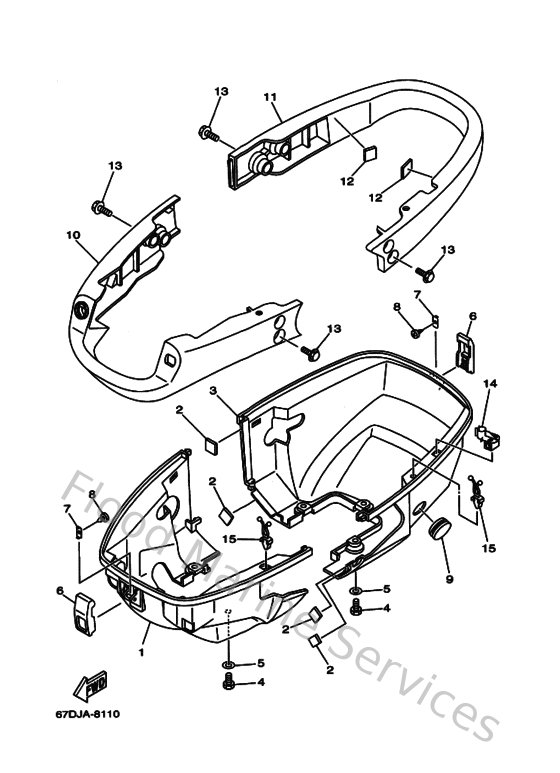

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
67D427110000
Cowling, Bottom 1
Loading…
↗
2
67D426620000
Damper
Loading…
↗
4
970950601600
Bolt, hexagon deep recess
Loading…
↗
5
929950660000
Washer, plain (646)
Loading…
↗
6
6L5426470000
Holder, clamp band
Loading…
↗
7
6L5428230000
Plate, stop
Loading…
↗
8
9016703M0200
Screw, tapping(6l5)
Loading…
↗
9
9048022M7200
Grommet
Loading…
↗
10
67D427310000
Carring, handle
Loading…
↗
11
67D427350000
Protector
Loading…
↗
13
9011906M7900
Bolt, with washer
Loading…
↗
14
9046407M5000
Clamp
Loading…
↗
15
904640707800
Clamp(81k)
Loading…
↗
