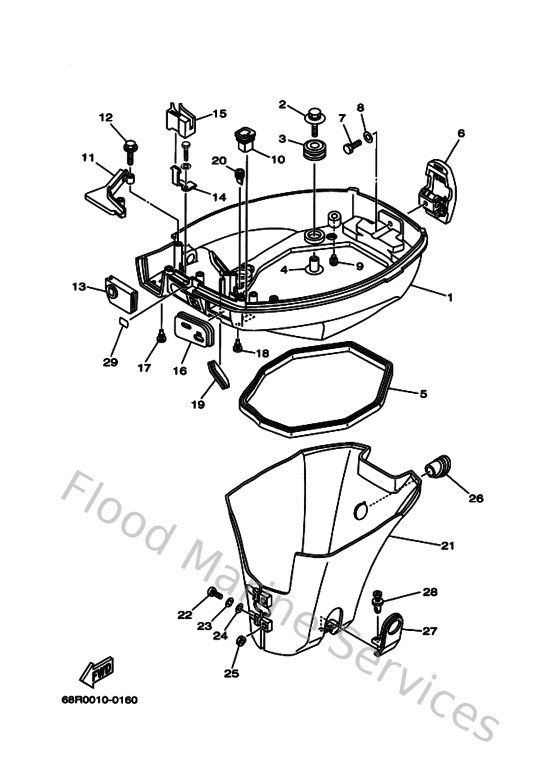

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
68T42710004D
Bottom Cowling assembly
Loading…

↗
2
68F851190000
Bolt
Loading…

↗
3
9048021M8200
Grommet
Loading…

↗
4
68F861290000
Collar
Loading…

↗
5
68T427160000
Rubber, seal 1
Loading…

↗
6
68T428010000
Cowling clamp comp.
Loading…

↗
7
970800601200
Bolt(gh1)
Loading…

↗
8
929950660000
Washer, plain (646)
Loading…

↗
9
6H3443910100
Nipple, hose
Loading…

↗
10
682427270000
Grommet
Loading…

↗
11
68T42738004D
Plate, fitting
Loading…

↗
12
9010906M8100
Bolt
Loading…

↗
13
68T427250000
Grommet
Loading…

↗
14
68T263930000
Holder
Loading…

↗
15
68T263670000
Protector
Loading…

↗
16
68T427240000
Grommet
Loading…

↗
17
9048006M1900
Grommet (6e3)
Loading…

↗
19
6H4427260000
Grommet
Loading…

↗
20
65W427170000
Rubber, seal 2
Loading…

↗
21
68T427410000
Apron
Loading…

↗
22
978850603000
Screw, pan head(6e0)
Loading…

↗
23
929900610000
Washer(6a1)
Loading…

↗
24
929900660000
Washer, plain (646)
Loading…

↗
25
953800660000
Nut(661)
Loading…

↗
26
68T427170000
Rubber, seal 2
Loading…

↗
27
68T427710000
Apron
Loading…

↗
28
9033806M2000
Plug
Loading…

↗
29
65W843420000
Seat, emblem
Loading…

↗
