Yamaha Outboard Parts - Bottom Cowling - F8AMH (1989) | Flood Marine

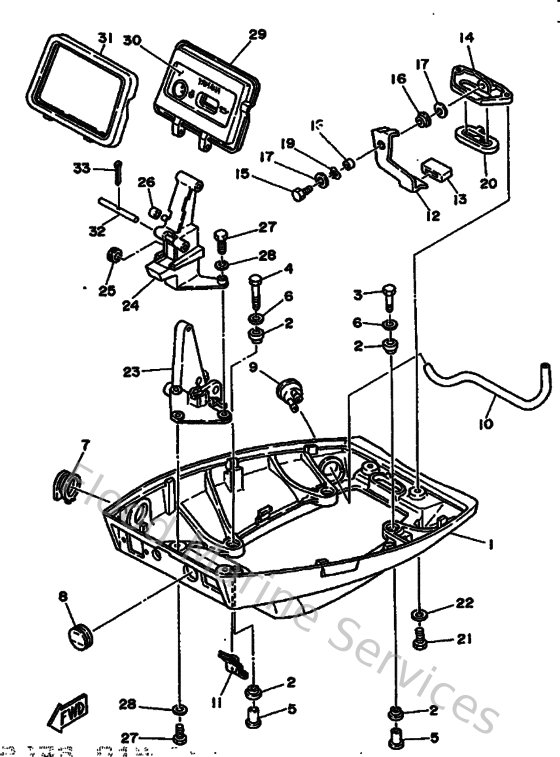

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


2
9048009M3500
Grommet (6G8)
Loading…

↗
3
973130603000
Bolt
Loading…

↗
4
973130604000
Bolt (682)
Loading…

↗
5
9038706M1500
Collar(6g8)
Loading…

↗
6
9020106M3100
Washer (6a0)
Loading…

↗
7
6G8427240000
Grommet 1
Loading…

↗
8
6G8427251000
Gr0Mmet 1
Loading…

↗
9
6G8443910000
Nipple, Hose
Loading…

↗
11
6G8427270000
Grommet 4
Loading…

↗
12
6G8428150000
Lever, clamp 1
Loading…

↗
13
6G8428310000
Bushing Lever
Loading…

↗
14
6G8428110094
Stay, clamp
Loading…

↗
15
973130601600
Bolt, hexagon deep recess
Loading…

↗
16
9038608M4900
Bushing (6g8)
Loading…

↗
18
903870670400
Collar (796)
Loading…

↗
19
9020608M1300
Washer, Wave
Loading…

↗
20
6G8427480000
Grommet
Loading…

↗
21
973950601600
Bolt, hexagon deep recess
Loading…

↗
22
929900660000
Washer, plain (646)
Loading…

↗
23
6G8427380094
Plate Fitting
Loading…

↗
24
6G84271900EL
Panel Front Lower
Loading…

↗
25
904801936800
Grommet(75v)
Loading…

↗
29
6G8W42610000
Panel, Front Upper
Loading…

↗
31
6G8426290100
Seal
Loading…

↗
32
6G8427550000
Hinge, cowling
Loading…

↗
33
914901601000
Pin, cotter
Loading…

↗
