FT9.9DMHSL (1999)
Bottom Cowling

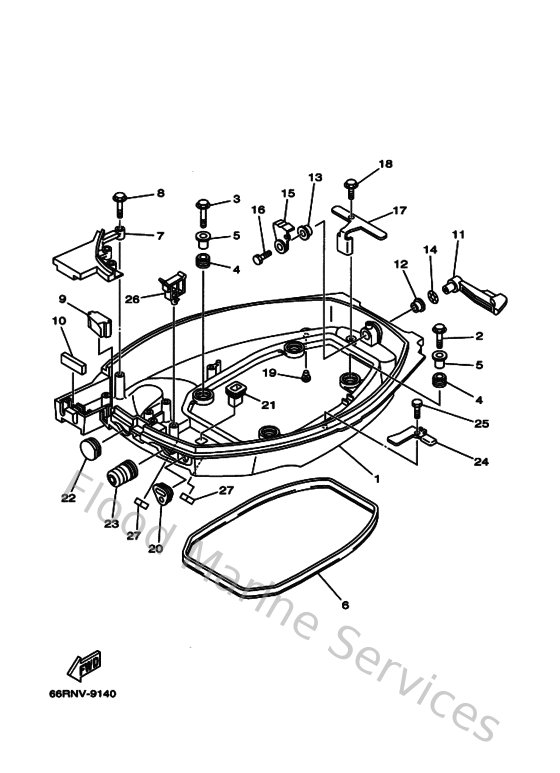

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
1
66M42710014D
Bottom Cowling assembly
Loading…
↗
2
975950653500
Bolt(j52)
Loading…
↗
3
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
4
9048015M3100
Grommet (6g1)
Loading…
↗
5
9038706M5200
Collar (6g1)
Loading…
↗
6
66M427160000
Rubber, seal 1
Loading…
↗
7
66M42738004D
Plate, fitting
Loading…
↗
8
9010906M8200
Bolt
Loading…
↗
9
66M427250000
Grommet
Loading…
↗
10
65W427270000
Grommet
Loading…
↗
11
66M42815004D
Lever, clamp 1
Loading…
↗
12
9038612M3700
Bushing (6f5)
Loading…
↗
13
9038612MA200
Bush
Loading…
↗
14
902061205200
Washer, wave (666)
Loading…
↗
15
6L2428160000
Lever, clamp
Loading…
↗
16
970950601200
Bolt(gh1)
Loading…
↗
17
66M427660000
Bracket 2
Loading…
↗
18
9010906M8600
Bolt
Loading…
↗
19
6H3443910100
Nipple, hose
Loading…
↗
20
66M263260000
Grommet
Loading…
↗
21
682427270000
Grommet
Loading…
↗
22
682427240000
Grommet
Loading…
↗
23
65W427260000
Grommet
Loading…
↗
24
66M427430000
Bracket
Loading…
↗
26
9046525M5700
Clamp(63v)
Loading…
↗
27
66R445320000
Stopper Upper Mount
Loading…
↗
