L140BETOL (1989)
Bottom Cowling

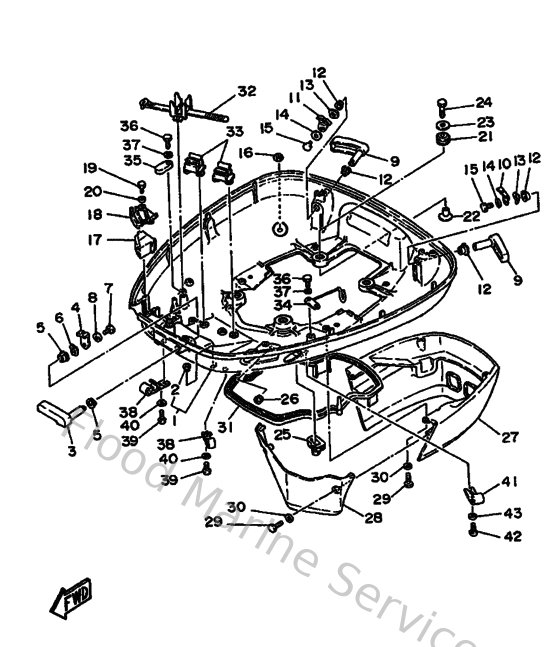

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
6H4427480000
Grommet
Loading…
↗
4
688428160000
Lever, clamp 2
Loading…
↗
5
9038613M3800
Bushing (697)
Loading…
↗
6
9020613M1000
Washer, wave (6e5)
Loading…
↗
7
970800601200
Bolt(gh1)
Loading…
↗
8
9020106M0200
Washer,plate (6k8)
Loading…
↗
9
6E54281700EJ
Lever, Clamp
Loading…
↗
10
6G5428160000
Lever, clamp 2
Loading…
↗
11
6E5428160100
Lever, clamp 2
Loading…
↗
15
973950601200
Bolt(gh1)
Loading…
↗
16
6E5443910000
Nipple, hose
Loading…
↗
17
6E5427251100
Grommet
Loading…
↗
18
6E5427380094
Plate, fitting
Loading…
↗
19
973130601600
Bolt, hexagon deep recess
Loading…
↗
20
929900660000
Washer, plain (646)
Loading…
↗
21
9048022M1500
Grommet (6e5)
Loading…
↗
22
9038708M3700
Coller (6e5)
Loading…
↗
23
9020108M5400
Washer, plate (6e5)
Loading…
↗
24
970900803500
Bolt(70w)
Loading…
↗
26
9048013M2400
Grommet (6e9)
Loading…
↗
29
973950602000
Bolt(7u8)
Loading…
↗
31
6E5427160000
Seal
Loading…
↗
32
688825940000
Clamp
Loading…
↗
33
6E5825940000
Clamp
Loading…
↗
34
6K7825880000
Plate
Loading…
↗
35
6E5825880000
Plate
Loading…
↗
36
973130602000
Bolt(7u8)
Loading…
↗
38
6E5243670100
Clamp, fuel pipe 2
Loading…
↗
39
9015706M0100
Screw (6e5)
Loading…
↗
