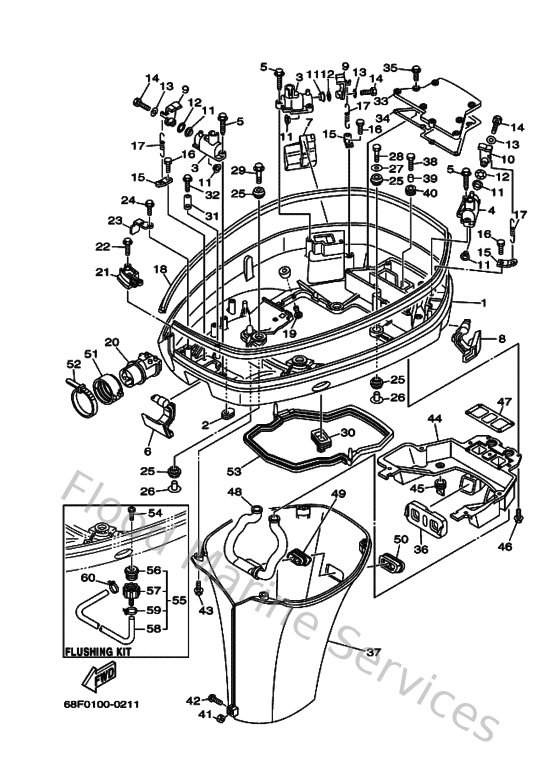

Diagram: Bottom Cowling

Diagram

Parts List

Reference
Description
Price


1
68F42711008D
Cowling, Bottom 1
Loading…

↗
2
61A427270000
Grommet
Loading…

↗
3
68F428280094
Plate, clamp
Loading…

↗
4
68F42828119S
Plate, clamp
Loading…

↗
5
9010906M8200
Bolt
Loading…

↗
6
68F42815008D
Lever, clamp
Loading…

↗
7
68F42816008D
Lever, clamp
Loading…

↗
8
68F42817008D
Lever, clamp
Loading…

↗
9
68F428180000
Lever, clamp
Loading…

↗
10
67F428180000
Lever, clamp
Loading…

↗
11
9038615M7300
Bush(6l2)
Loading…

↗
12
9020615M1800
Washer, wave(6l2)
Loading…

↗
13
902010606800
Washer,plate (6k8)
Loading…

↗
14
970950601600
Bolt, hexagon deep recess
Loading…

↗
15
64D431440000
Hook, spring
Loading…

↗
16
9010906M8000
Bolt
Loading…

↗
17
9050616M3400
Spring, tension(64d)
Loading…

↗
18
68F426150000
Seal
Loading…

↗
19
6E5443910000
Nipple, hose
Loading…

↗
20
68F427250100
Grommet
Loading…

↗
21
68F42738005B
Plate, fitting
Loading…

↗
22
9010906M8600
Bolt
Loading…

↗
23
64D427381100
Plate, fitting
Loading…

↗
25
9048022M8100
Grommet
Loading…

↗
26
9038708M3700
Coller (6e5)
Loading…

↗
27
9020108M5400
Washer, plate (6e5)
Loading…

↗
28
970750803500
Bolt(70w)
Loading…

↗
29
9011908M2200
Bolt, with washer
Loading…

↗
30
688427261000
Grommet
Loading…

↗
31
6E5825880000
Plate
Loading…

↗
32
958950602000
Bolt, flange(jk3)
Loading…

↗
33
68F427230094
Cover, bottom
Loading…

↗
34
68F427210000
Gasket 1
Loading…

↗
35
958800602000
Bolt, flange(jk3)
Loading…

↗
36
68F427690000
Seal Rubber
Loading…

↗
37
68F42741104D
Apron
Loading…

↗
39
9038706M4300
Coller (6e9)
Loading…

↗
40
9048013M2400
Grommet (6e9)
Loading…

↗
41
953800660000
Nut(661)
Loading…

↗
42
9015906M0300
Screw (6g5)
Loading…

↗
43
958950601600
Bolt, flange deep recess
Loading…

↗
44
68F427710000
Apron
Loading…

↗
45
61A427170000
Rubber, seal 2
Loading…

↗
46
958800601600
Bolt, flange(jl8)
Loading…

↗
47
68F427220000
Gasket 2
Loading…

↗
48
68F125771000
Hose 2
Loading…

↗
49
68F125821000
Joint, hose 2
Loading…

↗
50
68F427180000
Rubber, seal 3
Loading…

↗
51
68F427530000
Fastner
Loading…

↗
52
906012002200
Nylon clip 1(65b)
Loading…

↗
53
6E5427161000
Rubber seal 1
Loading…

↗
54
9016905M0000
Screw truss head tapping
Loading…

↗
55
6R3Y125J7000
Flushing kit
Loading…

↗
56
6R3125800000
Joint assembly
Loading…

↗
57
6R3125720000
Adapter
Loading…

↗
58
9044511M3500
Hose (l700)
Loading…

↗
59
9046511M1000
Clamp
Loading…

↗
60
80L263970000
Band
Loading…

↗
