S250AETOXLX (1997)
Bottom Cowling

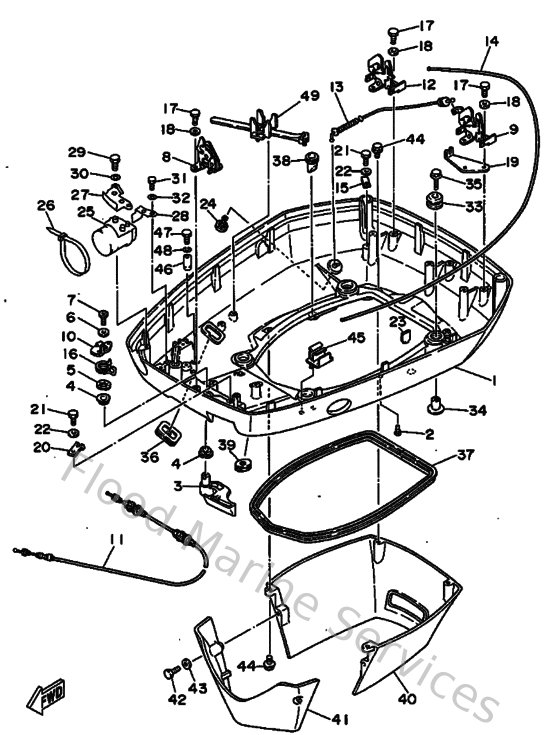

Diagram: Bottom Cowling
Parts List
Reference
Description
Price
2
9048006M1900
Grommet (6e3)
Loading…
↗
3
61A42815018D
Lever, Clamp
Loading…
↗
4
9038613M8800
Bush(6r3)
Loading…
↗
5
9020613M1000
Washer, wave (6e5)
Loading…
↗
6
9020106M3000
Washer, plate (6a1)
Loading…
↗
7
9010906M5000
Bolt(61a)
Loading…
↗
8
6R3428240000
Base, clamp lever
Loading…
↗
9
6R3428110100
Stay
Loading…
↗
10
6R3428160000
Lever, clamp
Loading…
↗
11
6R3428501000
Wire, complete
Loading…
↗
12
6R3428111000
Stay
Loading…
↗
13
61A428500100
Wire Complete
Loading…
↗
14
61A428502000
Wire, complete
Loading…
↗
15
682441170000
Bracket 1
Loading…
↗
16
6R3428130000
Spring, clamp lever
Loading…
↗
17
970950601600
Bolt, hexagon deep recess
Loading…
↗
18
929900660000
Washer, plain (646)
Loading…
↗
19
6N7428280000
Plate, clamp
Loading…
↗
20
6R3428280000
Plate, clamp
Loading…
↗
21
970850601000
Bolt
Loading…
↗
24
6E5443910000
Nipple, hose
Loading…
↗
25
61A427251200
Grommet
Loading…
↗
26
9046513M3600
Clamp(6h4)
Loading…
↗
27
61A42738028D
Plate, fitting
Loading…
↗
28
64D42738105B
Plate, fitting
Loading…
↗
31
970800601200
Bolt(gh1)
Loading…
↗
33
9048022M1500
Grommet (6e5)
Loading…
↗
34
9038708M3700
Coller (6e5)
Loading…
↗
35
9011908M2200
Bolt, with washer
Loading…
↗
36
688427261000
Grommet
Loading…
↗
37
61A427160000
Rubber seal 1
Loading…
↗
38
61A427170000
Rubber, seal 2
Loading…
↗
39
61A427270000
Grommet
Loading…
↗
40
61A42741018D
Apron
Loading…
↗
42
970950603000
Bolt(jf7)
Loading…
↗
44
970800602000
Bolt(7u8)
Loading…
↗
45
6E5825940000
Clamp
Loading…
↗
46
6E5825880000
Plate
Loading…
↗
47
970950602000
Bolt(7u8)
Loading…
↗
49
688825940000
Clamp
Loading…
↗
