115BETOL (1988)
Bracket

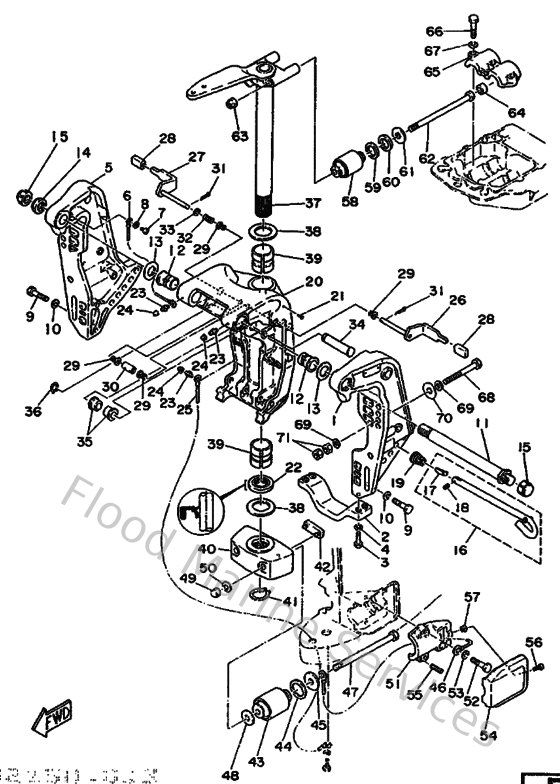

Diagram: Bracket
Parts List
Reference
Description
Price
3
973950602500
Bolt
Loading…
↗
4
929900660000
Washer, plain (646)
Loading…
↗
6
6E5821480000
Wire, lead 5
Loading…
↗
7
925800601200
Screw, pan head(62j)
Loading…
↗
9
973951004500
Bolt(64d)
Loading…
↗
10
929901010000
Ybs67-10 washer, spring
Loading…
↗
11
6R3431310000
Bolt, clamp bracket
Loading…
↗
12
9038625M3100
Bushing (6e5)
Loading…
↗
13
9020126M5900
Washer, plate (6e5)
Loading…
↗
14
901852204300
Nut, self-locking
Loading…
↗
15
6G5431450100
Cap, clamp bracket
Loading…
↗
16
6E5431600000
Tilt rod ass'y
Loading…
↗
17
688431650000
Stopper, tilt rod
Loading…
↗
18
916903001400
Pin, spring (647)
Loading…
↗
19
9050220M0300
Spring (6e5)
Loading…
↗
21
902690301000
Rivet (663)
Loading…
↗
22
9310938M0200
Oil seal (6e5)
Loading…
↗
23
937000600400
Nipple, grease(6a1)
Loading…
↗
24
663451190000
Cap, grease nipple
Loading…
↗
25
61A821473000
Wire, lead 5
Loading…
↗
26
6E5431810100
Lever, Tilt Stop (6E5-43181-00-00)
Loading…
↗
27
6E5431850100
Lever, Tilt Stop (6E5-43185-00-00)
Loading…
↗
29
9038610M1600
Bushing (688)
Loading…
↗
30
9038710M3800
Coller (6e5)
Loading…
↗
31
914903002500
Pin cotter
Loading…
↗
32
9050110M2100
Spring (688)
Loading…
↗
33
929901060000
Washer, plate
Loading…
↗
34
6E5431260200
Pin, upper shock mount
Loading…
↗
35
9038618M4400
Bushing (6g5)
Loading…
↗
36
9341018M0200
Circlip (6f2)
Loading…
↗
37
6E54251005EJ
Steering Bracket assembly
Loading…
↗
38
9020138M6000
Washer, plate (6e5)
Loading…
↗
39
9038638M3200
Bush(6e5)
Loading…
↗
40
6G54455101EJ
Housing, Lower Mount Rubber
Loading…
↗
41
9341037M0400
Circlip (6e5)
Loading…
↗
42
6E5445750000
Damper, lower mount rubber
Loading…
↗
43
6E5445550094
Mount damper, lower side
Loading…
↗
44
9020232M1900
Washer, plate (6e5)
Loading…
↗
45
9020116M5500
Washer, plate (6e5)
Loading…
↗
46
6E5821490000
Wire, lead 3
Loading…
↗
47
9010914M3400
Bolt(6e5)
Loading…
↗
48
9020115M5800
Washer, plate (6e5)
Loading…
↗
49
953801480000
Nut, crown (6e5)
Loading…
↗
50
929901460000
Washer (6e5)
Loading…
↗
51
6E54455201CA
Housing, lower mount rubber
Loading…
↗
55
9050116M2800
Spring (6e5)
Loading…
↗
56
923800601500
Screw pan head
Loading…
↗
57
901790606600
Nut(663)
Loading…
↗
58
6E5445140094
Mount damper, upper side
Loading…
↗
59
9020126M5700
Washer, plate (6e5)
Loading…
↗
60
9020226M1800
Washer, plate (6e5)
Loading…
↗
61
9020114M5600
Washer, plate (6e5)
Loading…
↗
62
9010912M3700
Bolt
Loading…
↗
63
901851205800
Nut, nylon(663)
Loading…
↗
64
663445750000
Damper, lower mount rubber
Loading…
↗
65
6E5445110094
Cover, upper mount
Loading…
↗
68
9010112M0300
Bolt (l:115mm)
Loading…
↗
69
9020113M0100
Washer, plate(6e5)
Loading…
↗
70
902011242600
Washe, plate(663)
Loading…
↗
71
953801260000
Nut (707)
Loading…
↗
2
6G5452510000
Anode
Loading…
↗
7
978850601200
Screw, pan head(62j)
Loading…
↗
9
973951005000
Bolt, hexagon deep recess
Loading…
↗
12
6E5431310100
Bolt, clamp bracket
Loading…
↗
15
901852200700
Nut, self-locking
Loading…
↗
16
663431450000
Cap, clamp bracket
Loading…
↗
17
6G5431640000
Rod, Tilt Lock
Loading…
↗
18
9010912M3500
Bolt
Loading…
↗
21
9370006M0300
Nipple, grease(6a1)
Loading…
↗
23
6E5821470000
Wire, lead 5
Loading…
↗
24
9046411M1800
Clamp(6e5)
Loading…
↗
25
985800400800
Screw, pan head (713)
Loading…
↗
26
6G5431440000
Hook, spring
Loading…
↗
27
973950601000
Bolt
Loading…
↗
28
6G5431810200
Lever, tilt stop 1
Loading…
↗
31
6G5431480000
Collar, distance
Loading…
↗
34
916903002000
Pin, spring (6h4)
Loading…
↗
35
9050614M2400
Spring, tension(6e5)
Loading…
↗
37
9038618M6300
Bush(6e5)
Loading…
↗
38
9038618M1400
Bushing (6e5)
Loading…
↗
68
6E544511009M
Cover, upper mount
Loading…
↗
