200AETOL (1989)
Bracket

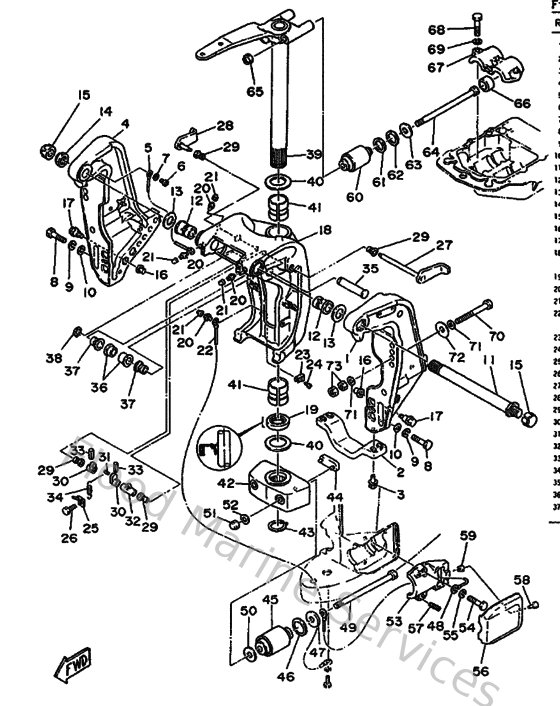

Diagram: Bracket
Parts List
Reference
Description
Price
2
6G5452510100
Anode
Loading…
↗
3
9011906M5200
Bolt, hexagon w/w deep recess
Loading…
↗
5
6E5821480000
Wire, lead 5
Loading…
↗
6
978850601200
Screw, pan head(62j)
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
973951005000
Bolt, hexagon deep recess
Loading…
↗
9
929901010000
Ybs67-10 washer, spring
Loading…
↗
10
929901060000
Washer, plate
Loading…
↗
11
6R3431310000
Bolt, clamp bracket
Loading…
↗
13
9020126M5900
Washer, plate (6e5)
Loading…
↗
14
901852204300
Nut, self-locking
Loading…
↗
15
6G5431450100
Cap, clamp bracket
Loading…
↗
16
6G5431640000
Rod, Tilt Lock
Loading…
↗
17
9010912M3500
Bolt
Loading…
↗
19
9310938M0200
Oil seal (6e5)
Loading…
↗
20
937000600400
Nipple, grease(6a1)
Loading…
↗
21
663451190000
Cap, grease nipple
Loading…
↗
22
6E5821470000
Wire, lead 5
Loading…
↗
23
9046411M1800
Clamp(6e5)
Loading…
↗
24
985800400800
Screw, pan head (713)
Loading…
↗
25
6G5431440000
Hook, spring
Loading…
↗
26
973950601000
Bolt
Loading…
↗
27
6G5431810100
Lever, tilt stop 1
Loading…
↗
28
6G5431850200
Lever, tilt stop 2
Loading…
↗
29
9038610M1600
Bushing (688)
Loading…
↗
30
6G5431480000
Collar, distance
Loading…
↗
31
9024906M1900
Pin(6e5)
Loading…
↗
32
9038710M0200
Collar(6e5)
Loading…
↗
33
916903002000
Pin, spring (6h4)
Loading…
↗
34
9050614M2400
Spring, tension(6e5)
Loading…
↗
35
6E5431260100
Pin, upper shock mount
Loading…
↗
36
9038618M6300
Bush(6e5)
Loading…
↗
37
9038618M1400
Bushing (6e5)
Loading…
↗
38
9341018M0500
Circlip (6f2)
Loading…
↗
39
6E54251003EJ
Steering Bracket assembly
Loading…
↗
40
9020138M6000
Washer, plate (6e5)
Loading…
↗
41
9038638M8900
Bush(6e5)
Loading…
↗
42
6G54455100EJ
Housing, Lower Mount Rubber
Loading…
↗
43
9341037M0400
Circlip (6e5)
Loading…
↗
44
6E5445750000
Damper, lower mount rubber
Loading…
↗
45
6G5445550000
Mount damper, lower side
Loading…
↗
46
9020232M1900
Washer, plate (6e5)
Loading…
↗
47
9020116M5500
Washer, plate (6e5)
Loading…
↗
48
6E5821490000
Wire, lead 3
Loading…
↗
49
9010914M3400
Bolt(6e5)
Loading…
↗
50
9020115M5800
Washer, plate (6e5)
Loading…
↗
51
953801480000
Nut, crown (6e5)
Loading…
↗
52
929901460000
Washer (6e5)
Loading…
↗
53
6E5445520094
Housing, lower mount rubber
Loading…
↗
54
970951004500
Bolt(64d)
Loading…
↗
57
9050116M2800
Spring (6e5)
Loading…
↗
58
923800601500
Screw pan head
Loading…
↗
59
901790606600
Nut(663)
Loading…
↗
60
6G5445140094
Mount damper, upper side
Loading…
↗
61
9020126M5700
Washer, plate (6e5)
Loading…
↗
62
9020226M1800
Washer, plate (6e5)
Loading…
↗
63
9020114M5600
Washer, plate (6e5)
Loading…
↗
65
901851205800
Nut, nylon(663)
Loading…
↗
66
663445750000
Damper, lower mount rubber
Loading…
↗
67
6E544511009M
Cover, upper mount
Loading…
↗
70
9010112M0300
Bolt (l:115mm)
Loading…
↗
71
9020113M0100
Washer, plate(6e5)
Loading…
↗
72
902011242600
Washe, plate(663)
Loading…
↗
73
953801260000
Nut (707)
Loading…
↗
