30DMSLH (2000)
Bracket

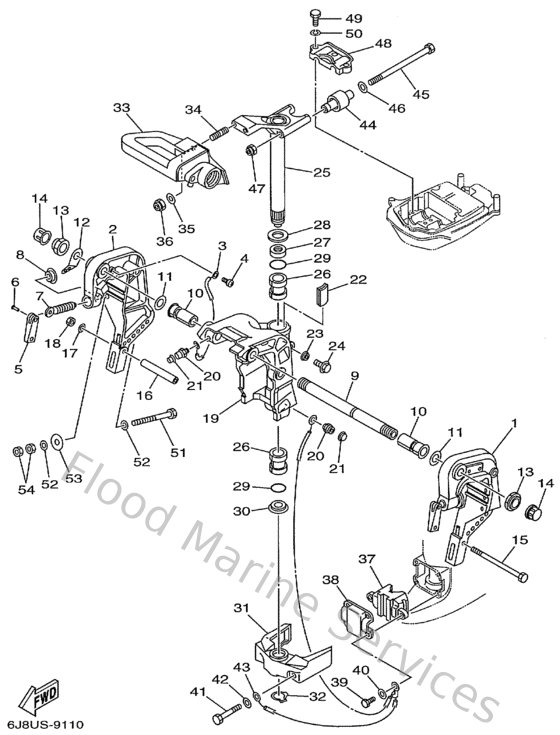

Diagram: Bracket
Parts List
Reference
Description
Price
1
6H443111054D
Bracket, clamp 1
Loading…
↗
2
6H443112044D
Bracket, clamp 2
Loading…
↗
3
6E5821480000
Wire, lead 5
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
6E0431180100
Handle, transom clamp
Loading…
↗
6
9024304M0100
Pin(6a1)
Loading…
↗
7
9014914M1200
Screw(6h4)
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
6J8431310100
Bolt, clamp bracket
Loading…
↗
10
9038622M6900
Bush(6k9)
Loading…
↗
11
9020122M0300
Washer, plate(64j)
Loading…
↗
12
6J8431130100
Plate, clamp bracket
Loading…
↗
13
901852204300
Nut, self-locking
Loading…
↗
14
6G5431450000
Cap, clamp bracket
Loading…
↗
15
901010833900
Bolt, hexagon (656)
Loading…
↗
16
9038708M0300
Collar
Loading…
↗
17
929950860000
Washer, plain (663)
Loading…
↗
18
953800860000
Nut (661)
Loading…
↗
19
6J843311044D
Bracket, swivel
Loading…
↗
20
9370006M0300
Nipple, grease(6a1)
Loading…
↗
21
663451190000
Cap, grease nipple
Loading…
↗
22
6J8425280000
Plate, friction
Loading…
↗
23
689433730100
Seal, damper
Loading…
↗
24
9010506M1800
Bolt (689)
Loading…
↗
25
6J842510024D
Steering bracket assembly
Loading…
↗
26
9038630M7700
Bush(6h0)
Loading…
↗
27
9038630M7800
Bush(6h0)
Loading…
↗
28
9020130M0000
Washer, plate(6h1)
Loading…
↗
29
9321029M9400
O-ring(6h1)
Loading…
↗
30
9038630M6000
Bush(6j8)
Loading…
↗
31
6H444551024D
Housing, lower mount rubber 1
Loading…
↗
32
9341028M0600
Circlip (688)
Loading…
↗
33
6J842121038D
Bracket
Loading…
↗
34
9011610M2800
Bolt, stud
Loading…
↗
35
929951060000
Washer, plate
Loading…
↗
36
901851002700
Nut, self-locking
Loading…
↗
37
6H4445570000
Mount, lower front
Loading…
↗
38
6H4445530100
Cover, lower mount
Loading…
↗
39
989800802500
Screw, bind(j36)
Loading…
↗
41
970951006000
Bolt, hexagon
Loading…
↗
42
929901060000
Washer, plate
Loading…
↗
43
6H4821270000
Wire, lead 2
Loading…
↗
44
6H4445140000
Mount, upper side
Loading…
↗
45
9010908M2600
Bolt(6j8)
Loading…
↗
46
902010942500
Washer, plate (663)
Loading…
↗
47
901850801800
Nut, self-locking
Loading…
↗
48
6J844511004D
Cover, upper mount
Loading…
↗
49
970950803500
Bolt(70w)
Loading…
↗
50
929950810000
Ybs67-8 washer, spring
Loading…
↗
51
9010110M5800
Bolt
Loading…
↗
53
902011242600
Washe, plate(663)
Loading…
↗
54
953801060000
Nut(624)
Loading…
↗
1
6H4431600100
Tilt rod assembly
Loading…
↗
2
676431650000
Stopper plate, titl lock rod
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
4
9050210M0400
Spring, conical(6f5)
Loading…
↗
5
6J8431810100
Lever, tilt stop 1
Loading…
↗
6
682433180100
Cover
Loading…
↗
7
9050612M2500
Spring, tension(6h4)
Loading…
↗
8
9024912M2800
Pin(6h4)
Loading…
↗
9
9343010M0000
Circlip
Loading…
↗
10
902021203100
Washer, plate 6484412600
Loading…
↗
11
6J8436270000
Stopper
Loading…
↗
12
9024912M2700
Pin(6f6)
Loading…
↗
13
990801060000
Circlip
Loading…
↗
15
9020612M1600
Washer, wave(6j8)
Loading…
↗
16
6J8436140000
Plate, tilt lock
Loading…
↗
17
6J8436150000
Plate, tilt lock
Loading…
↗
18
6J8436130100
Arm, tilt lock
Loading…
↗
19
6H4436590000
Shaft, reverse lock
Loading…
↗
20
6J8436110100
Shaft, tilt lock
Loading…
↗
21
9038707M6400
Collar (6h4)
Loading…
↗
22
9343006M0200
Circlip (689)
Loading…
↗
23
934300502700
Circlip(22k)
Loading…
↗
24
9050632M2200
Spring, tension(6j8)
Loading…
↗
25
6H4436740000
Washer 2
Loading…
↗
26
914902001000
Pin, cotter
Loading…
↗
27
6J8436310000
Lever, tilt
Loading…
↗
28
6J8436330000
Cover, tilt lever
Loading…
↗
29
9050818M2300
Spring, torsion(6h4)
Loading…
↗
30
6H4436160000
Rod, tilt lock 1
Loading…
↗
31
6J8436410000
Lever, tilt
Loading…
↗
32
9024906M2400
Pin(6h4)
Loading…
↗
33
6J8436170000
Rod, tilt lock
Loading…
↗
35
6J8436810100
Lever, shallow water drive
Loading…
↗
36
6J8436730000
Washer 1
Loading…
↗
37
6J8436311000
Lever, tilt
Loading…
↗
41
6J8436171000
Rod, tilt lock
Loading…
↗
42
6J8431860000
Lever
Loading…
↗
43
6J8431870000
Lever 2
Loading…
↗
44
9050825M2100
Spring, torsion(6h4)
Loading…
↗
45
9024907M2500
Pin(6h4)
Loading…
↗
47
6J8412620000
Joint, choke lever
Loading…
↗
48
6J8436161000
Rod, tilt lock
Loading…
↗
49
9050820M2200
Spring, torsion(6h4)
Loading…
↗
