50DEMTO (1986)
Bracket

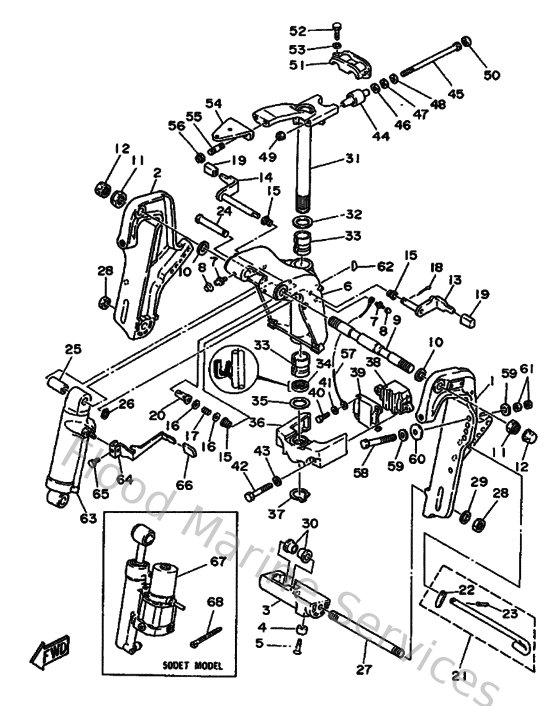

Diagram: Bracket
Parts List
Reference
Description
Price
4
688452510100
Anode
Loading…
↗
5
921800602500
Screw, countersunk
Loading…
↗
7
937000600400
Nipple, grease(6a1)
Loading…
↗
8
663451190000
Cap, grease nipple
Loading…
↗
9
663431310000
Bolt, clamp bracket
Loading…
↗
10
902012242800
Washer, plate(64j)
Loading…
↗
11
901852200700
Nut, self-locking
Loading…
↗
12
663431450000
Cap, clamp bracket
Loading…
↗
13
6H5431810000
Lever, Tilt Stop
Loading…
↗
14
6H5431850000
Lever, Tilt Stop
Loading…
↗
15
9038610M1600
Bushing (688)
Loading…
↗
16
929901020000
958-69527-00 washer, plain
Loading…
↗
17
9050110M2100
Spring (688)
Loading…
↗
18
914903002500
Pin cotter
Loading…
↗
19
663433180000
Cover
Loading…
↗
20
9038610M1900
Bush
Loading…
↗
21
676431600100
Tilt rod assembly
Loading…
↗
22
676431650000
Stopper plate, titl lock rod
Loading…
↗
23
916903001000
Pin, spring (663)
Loading…
↗
24
6H5431260000
Pin, Upper Shock Mt
Loading…
↗
26
9341014M0700
Circlip (6h5)
Loading…
↗
27
9011618M2100
Bolt, Stud
Loading…
↗
28
9017018M1000
Nut (6h5)
Loading…
↗
29
929951860000
Washer(64j)
Loading…
↗
30
9038618M4400
Bushing (6g5)
Loading…
↗
31
6H44251009EJ
Steering Bracket assembly
Loading…
↗
32
902013042000
Washer, plate(6h1)
Loading…
↗
33
903863004800
Bush
Loading…
↗
34
9310930M0300
Oil seal (688)
Loading…
↗
35
902013141800
Washer plate(663)
Loading…
↗
37
9341028M0600
Circlip (688)
Loading…
↗
38
6H4445571000
Mount, lower front
Loading…
↗
39
6H4445530000
Cover, lower mount
Loading…
↗
40
970950802500
Bolt (62g)
Loading…
↗
41
929900860000
Washer, plain (663)
Loading…
↗
42
973951006000
Bolt, hexagon
Loading…
↗
43
929901060000
Washer, plate
Loading…
↗
44
6H4445140000
Mount, upper side
Loading…
↗
45
9010108M8600
Bolt (6h4)
Loading…
↗
47
9020215M3000
Washer, Plate
Loading…
↗
48
902010942500
Washer, plate (663)
Loading…
↗
49
901850804500
Nut, self-locking
Loading…
↗
50
663445330000
Damper, upper mount
Loading…
↗
51
6H44451100EJ
Cover, Upper Mount
Loading…
↗
52
970950803500
Bolt(70w)
Loading…
↗
53
929900810000
Ybs67-8 washer, spring
Loading…
↗
54
6H448511514D
Hook, Steering
Loading…
↗
55
901161017500
Bolt, stud
Loading…
↗
56
901851005100
Nut, self-locking
Loading…
↗
57
6H5821170000
Wire, Lead
Loading…
↗
58
9010112M6500
Bolt
Loading…
↗
59
929901220000
Ybs66-12 washer,plain
Loading…
↗
60
902011242600
Washe, plate(663)
Loading…
↗
61
953801260000
Nut (707)
Loading…
↗
65
970850601000
Bolt
Loading…
↗
66
682433180100
Cover
Loading…
↗
68
9046513M1100
Clamp (6e5)
Loading…
↗
