20DMHO (1996)
Bracket 1

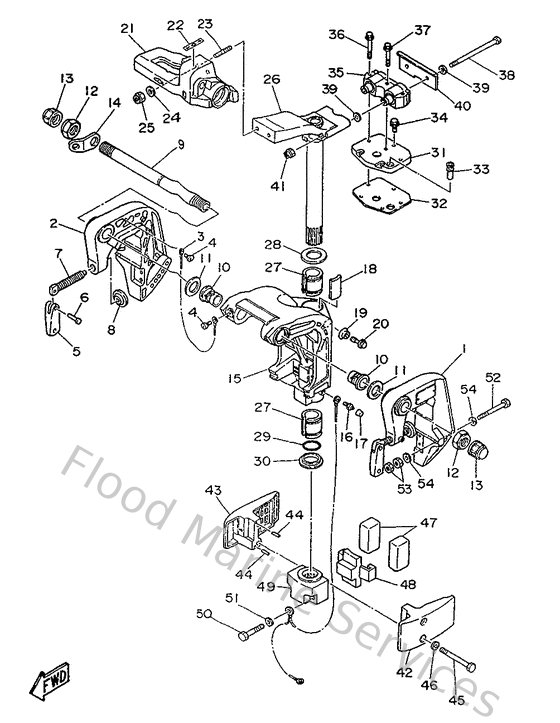

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
6L243111034D
Bracket, clamp 1
Loading…
↗
2
6L243112044D
Bracket, clamp 2
Loading…
↗
3
6E5821480000
Wire, lead 5
Loading…
↗
5
999990280800
Handle, transom clamp
Loading…
↗
7
6L2431160000
Screw, transom clamp
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
6J8431310100
Bolt, clamp bracket
Loading…
↗
13
6G5431450100
Cap, clamp bracket
Loading…
↗
14
6J8431130100
Plate, clamp bracket
Loading…
↗
15
6L243311044D
Bracket, swivel 1
Loading…
↗
17
663451190000
Cap, grease nipple
Loading…
↗
18
6H4425280000
Piece, friction
Loading…
↗
19
689433730100
Seal, damper
Loading…
↗
21
6L242121014D
Bracket
Loading…
↗
22
6X3441910000
Indicator, shift
Loading…
↗
26
6L242510004D
Steering bracket assembly
Loading…
↗
31
6L244512004D
Cover, upper mount
Loading…
↗
32
6L245114A100
Gasket, upper casing
Loading…
↗
33
6L2443650000
Damper, water seal 1
Loading…
↗
35
6L2445140000
Mount damper, upper side
Loading…
↗
40
6L2445260000
Plate
Loading…
↗
42
6L244551004D
Housing, lower mount rubber 1
Loading…
↗
43
6L244552004D
Housing, lower mount rubber 2
Loading…
↗
47
6L2445550000
Mount damper, lower side
Loading…
↗
48
6L2445570000
Mount damper, lower front
Loading…
↗
49
6L244553004D
Cover, lower mount
Loading…
↗
