250AETOXLX (1993)
Bracket 1

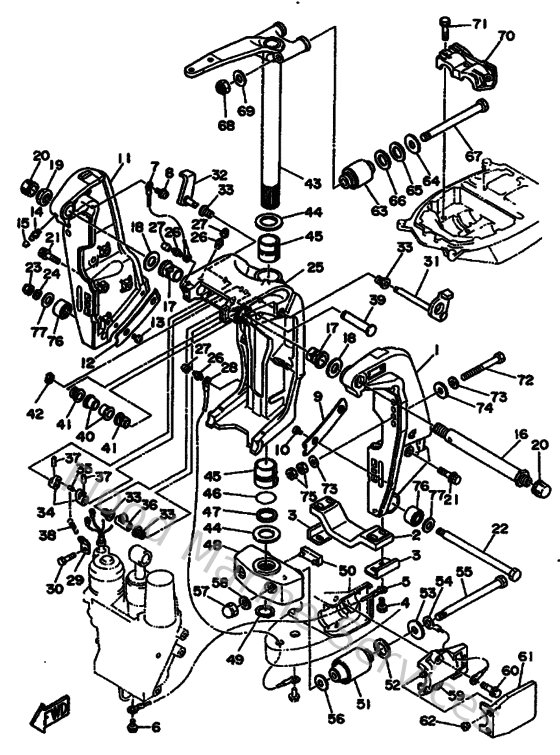

Diagram: Bracket 1
Parts List
Reference
Description
Price
2
6G5452510100
Anode
Loading…
↗
3
6G5445260000
Plate
Loading…
↗
4
975950652500
Bolt, hexagon w/w deep recess
Loading…
↗
5
6T4821170000
Wire, lead
Loading…
↗
6
975950651000
Bolt, hexagon w/w deep recess
Loading…
↗
7
6E5821480000
Wire, lead 5
Loading…
↗
8
979850621200
Screw, with washer(6h3)
Loading…
↗
9
61A431320000
Washer, friction
Loading…
↗
10
978950601000
Screw pan head
Loading…
↗
12
61A431330000
Washer,friction
Loading…
↗
14
9370006M0300
Nipple, grease(6a1)
Loading…
↗
15
663451190000
Cap, grease nipple
Loading…
↗
16
6R3431310000
Bolt, clamp bracket
Loading…
↗
17
9038625M3100
Bushing (6e5)
Loading…
↗
18
9020126M5900
Washer, plate (6e5)
Loading…
↗
19
901852200700
Nut, self-locking
Loading…
↗
20
6G5431450000
Cap, clamp bracket
Loading…
↗
21
975951064500
Bolt, hexagon w/w deep recess
Loading…
↗
23
957801230000
Nut, nylon (6f2)
Loading…
↗
24
929901220000
Ybs66-12 washer,plain
Loading…
↗
28
61A821473000
Wire, lead 5
Loading…
↗
29
6G5431440000
Hook, spring
Loading…
↗
30
973950601000
Bolt
Loading…
↗
31
61A431810100
Lever, tilt stop 1
Loading…
↗
32
6G5431850200
Lever, tilt stop 2
Loading…
↗
33
9038610M1600
Bushing (688)
Loading…
↗
34
6G5431480000
Collar, distance
Loading…
↗
35
9024906M1900
Pin(6e5)
Loading…
↗
36
9038710M0200
Collar(6e5)
Loading…
↗
37
916903002000
Pin, spring (6h4)
Loading…
↗
38
9050614M2400
Spring, tension(6e5)
Loading…
↗
39
6E5431260200
Pin, upper shock mount
Loading…
↗
40
9038618M6300
Bush(6e5)
Loading…
↗
41
9038618M1400
Bushing (6e5)
Loading…
↗
42
9341018M0200
Circlip (6f2)
Loading…
↗
44
9020140M0000
Washer, plate(61a)
Loading…
↗
45
9038639M8900
Bush(61a)
Loading…
↗
46
932103532100
O-ring (3m7)
Loading…
↗
47
9020240M4700
Washer, plate(61a)
Loading…
↗
49
9341037M0400
Circlip (6e5)
Loading…
↗
50
61A445750000
Damper, lower mount rubber
Loading…
↗
51
61A445550100
Mount damper, lower side
Loading…
↗
52
9020232M1900
Washer, plate (6e5)
Loading…
↗
53
9020116M5500
Washer, plate (6e5)
Loading…
↗
54
6E5821490000
Wire, lead 3
Loading…
↗
55
901011400200
Bolt
Loading…
↗
56
9020115M5800
Washer, plate (6e5)
Loading…
↗
57
953801480000
Nut, crown (6e5)
Loading…
↗
58
929901460000
Washer (6e5)
Loading…
↗
59
61A4455201CA
Housing, lower mount rubber
Loading…
↗
60
975951054500
Bolt, hexagon w/w deep recess
Loading…
↗
62
6A0157890000
Damper
Loading…
↗
63
61A445140000
HSNG,LWR
Loading…
↗
64
9020116M0100
Washer, plate(61a)
Loading…
↗
65
9020228M4600
Washer, plate(61a)
Loading…
↗
66
9020128M0100
Washer, plate(61a)
Loading…
↗
67
901011400300
Bolt
Loading…
↗
68
9018514M0000
Nut, self-locking(61a)
Loading…
↗
70
61A445110094
Cover, upper mount
Loading…
↗
72
9010112M0300
Bolt (l:115mm)
Loading…
↗
73
9020113M0100
Washer, plate(6e5)
Loading…
↗
74
902011242600
Washe, plate(663)
Loading…
↗
75
953801260000
Nut (707)
Loading…
↗
