25NEMO (1988)
Bracket 1

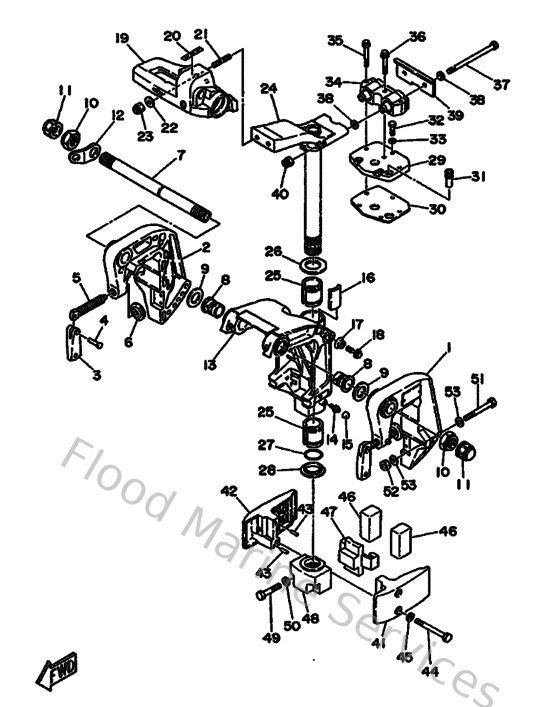

Diagram: Bracket 1
Parts List
Reference
Description
Price
3
6164311800EJ
Handle, transom clamp
Loading…
↗
4
9024304M0000
Pin(6a9)
Loading…
↗
5
9014914M0700
Screw, transom clamp
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6J8431310100
Bolt, clamp bracket
Loading…
↗
8
9038622M6700
Bush(6a9)
Loading…
↗
9
9020122M0300
Washer, plate(64j)
Loading…
↗
10
901852204300
Nut, self-locking
Loading…
↗
11
663431450000
Cap, clamp bracket
Loading…
↗
12
6J8431130100
Plate, clamp bracket
Loading…
↗
14
9370006M0300
Nipple, grease(6a1)
Loading…
↗
15
663451190000
Cap, grease nipple
Loading…
↗
16
6H4425280000
Piece, friction
Loading…
↗
17
689433730100
Seal, damper
Loading…
↗
18
9010506M1800
Bolt (689)
Loading…
↗
20
6E0441911100
Indicator, shift
Loading…
↗
21
901161006300
Bolt, stud
Loading…
↗
22
929901060000
Washer, plate
Loading…
↗
23
901851005100
Nut, self-locking
Loading…
↗
25
9038630M7500
Bush(6l2)
Loading…
↗
26
9020130M0000
Washer, plate(6h1)
Loading…
↗
27
932102937500
O-ring (j10)
Loading…
↗
28
9038630M6000
Bush(6j8)
Loading…
↗
30
6L245114A100
Gasket, upper casing
Loading…
↗
31
6L2443650000
Damper, water seal 1
Loading…
↗
32
973950602000
Bolt(7u8)
Loading…
↗
33
929900660000
Washer, plain (646)
Loading…
↗
34
6L2445140000
Mount damper, upper side
Loading…
↗
35
9011906M0400
Bolt, with washer(6l2)
Loading…
↗
36
975150624000
Bolt (682)
Loading…
↗
37
9010108M0900
Bolt(6l2)
Loading…
↗
38
9020108M0100
Washer, plate(6l2)
Loading…
↗
39
6L2445260000
Plate
Loading…
↗
40
901850805700
Nut, nylon (6j8)
Loading…
↗
43
9360410M0300
Pin, dowel (688)
Loading…
↗
44
973950808500
Bolt, with washer
Loading…
↗
45
929900860000
Washer, plain (663)
Loading…
↗
46
6L2445570000
Mount damper, lower front
Loading…
↗
49
970950804500
Bolt, hexagon
Loading…
↗
51
973950807000
Bolt, hexagon
Loading…
↗
52
953800860000
Nut (661)
