Yamaha Outboard Parts - Bracket 1 - 25NEMO (1993) | Flood Marine

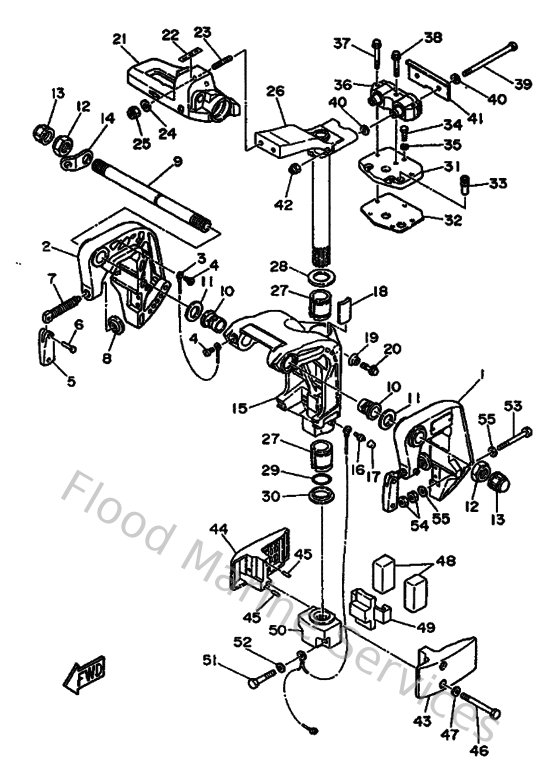

Diagram: Bracket 1

Diagram

Parts List

Reference
Description
Price


3
6E5821480000
Wire, lead 5
Loading…

↗
4
978950600800
Screw, pan head(6a3)
Loading…

↗
5
6164311800EJ
Handle, transom clamp
Loading…

↗
6
9024304M0000
Pin(6a9)
Loading…

↗
7
6L2431160000
Screw, transom clamp
Loading…

↗
8
648431140100
Pad, transom clamp
Loading…

↗
9
6J8431310100
Bolt, clamp bracket
Loading…

↗
10
9038622M6700
Bush(6a9)
Loading…

↗
11
902012242800
Washer, plate(64j)
Loading…

↗
12
901852204300
Nut, self-locking
Loading…

↗
13
6G5431450100
Cap, clamp bracket
Loading…

↗
14
6J8431130100
Plate, clamp bracket
Loading…

↗
16
9370006M0300
Nipple, grease(6a1)
Loading…

↗
17
663451190000
Cap, grease nipple
Loading…

↗
18
6H4425280000
Piece, friction
Loading…

↗
19
689433730100
Seal, damper
Loading…

↗
20
9010506M1800
Bolt (689)
Loading…

↗
22
6X3441910000
Indicator, shift
Loading…

↗
23
9011610M2800
Bolt, stud
Loading…

↗
24
929901060000
Washer, plate
Loading…

↗
25
901851005100
Nut, self-locking
Loading…

↗
27
9038630M7500
Bush(6l2)
Loading…

↗
28
9020130M0000
Washer, plate(6h1)
Loading…

↗
29
932102937500
O-ring (j10)
Loading…

↗
30
9038630M6000
Bush(6j8)
Loading…

↗
32
6L245114A100
Gasket, upper casing
Loading…

↗
33
6L2443650000
Damper, water seal 1
Loading…

↗
34
973950602000
Bolt(7u8)
Loading…

↗
35
929900660000
Washer, plain (646)
Loading…

↗
36
6L2445140100
Mount damper, upper side
Loading…

↗
37
975150625000
Bolt, With Washer
Loading…

↗
38
975150624000
Bolt (682)
Loading…

↗
39
9010108M0900
Bolt(6l2)
Loading…

↗
40
9020108M0100
Washer, plate(6l2)
Loading…

↗
42
957800830000
Nut, nylon (6j8)
Loading…

↗
45
9360410M0300
Pin, dowel (688)
Loading…

↗
46
973950808500
Bolt, with washer
Loading…

↗
47
929900860000
Washer, plain (663)
Loading…

↗
48
6L2445550000
Mount damper, lower side
Loading…

↗
49
6L2445570000
Mount damper, lower front
Loading…

↗
51
970950804500
Bolt, hexagon
Loading…

↗
53
973950807000
Bolt, hexagon
Loading…

↗
54
953800860000
Nut (661)
Loading…

↗
