25NEMO (1994)
Bracket 1

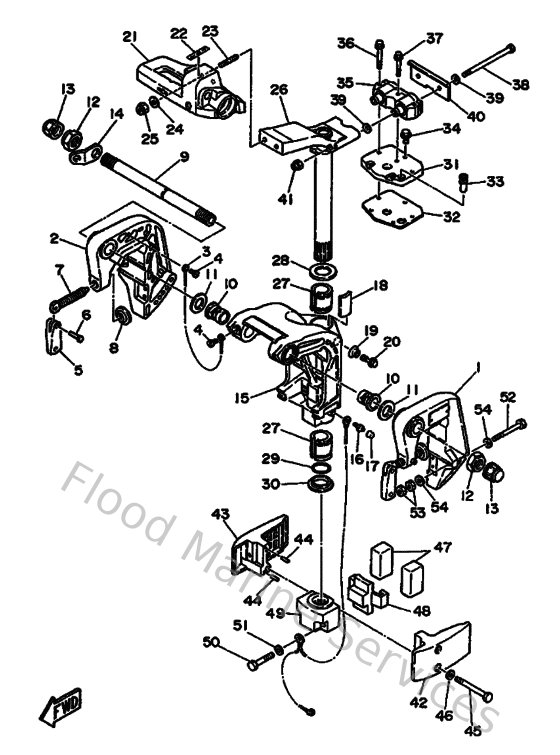

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
6L243111024D
Bracket, clamp 1
Loading…
↗
2
6L243112034D
Bracket, clamp 2
Loading…
↗
3
6E5821480000
Wire, lead 5
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
61643118004D
Handle, transom clamp
Loading…
↗
6
9024304M0000
Pin(6a9)
Loading…
↗
7
6L2431160000
Screw, transom clamp
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
6J8431310100
Bolt, clamp bracket
Loading…
↗
10
9038622M6700
Bush(6a9)
Loading…
↗
11
902012242800
Washer, plate(64j)
Loading…
↗
12
901852200700
Nut, self-locking
Loading…
↗
13
6G5431450000
Cap, clamp bracket
Loading…
↗
14
6J8431130100
Plate, clamp bracket
Loading…
↗
15
999990288700
Bracket, swivel (6l2 4d)
Loading…
↗
16
9370006M0300
Nipple, grease(6a1)
Loading…
↗
17
663451190000
Cap, grease nipple
Loading…
↗
18
6H4425280000
Piece, friction
Loading…
↗
19
689433730100
Seal, damper
Loading…
↗
20
9010506M1800
Bolt (689)
Loading…
↗
21
6L242121004D
Bracket
Loading…
↗
22
6X3441910000
Indicator, shift
Loading…
↗
23
9011610M2800
Bolt, stud
Loading…
↗
24
929901060000
Washer, plate
Loading…
↗
25
901851002700
Nut, self-locking
Loading…
↗
26
6L242510004D
Steering bracket assembly
Loading…
↗
27
9038630M7500
Bush(6l2)
Loading…
↗
28
9020130M0000
Washer, plate(6h1)
Loading…
↗
29
932102937500
O-ring (j10)
Loading…
↗
30
9038630M6000
Bush(6j8)
Loading…
↗
31
6L244512004D
Cover, upper mount
Loading…
↗
32
6L245114A100
Gasket, upper casing
Loading…
↗
33
6L2443650000
Damper, water seal 1
Loading…
↗
34
970800602000
Bolt(7u8)
Loading…
↗
35
6L2445140000
Mount damper, upper side
Loading…
↗
36
975950655000
Bolt, hexagon w/w deep recess
Loading…
↗
37
975900654000
Bolt, With Washer
Loading…
↗
38
9010108M0900
Bolt(6l2)
Loading…
↗
39
9020108M0100
Washer, plate(6l2)
Loading…
↗
40
6L2445260000
Plate
Loading…
↗
41
957800830000
Nut, nylon (6j8)
Loading…
↗
42
6L244551004D
Housing, lower mount rubber 1
Loading…
↗
43
6L244552018D
Housing, lower mount rubber 2
Loading…
↗
44
9360410M0300
Pin, dowel (688)
Loading…
↗
45
973950808500
Bolt, with washer
Loading…
↗
46
929900860000
Washer, plain (663)
Loading…
↗
47
6L2445550000
Mount damper, lower side
Loading…
↗
48
6L2445570000
Mount damper, lower front
Loading…
↗
49
6L244553004D
Cover, lower mount
Loading…
↗
50
970950804500
Bolt, hexagon
Loading…
↗
52
973950807000
Bolt, hexagon
Loading…
↗
53
953800860000
Nut (661)
