2BMH (1988)
Bracket 1

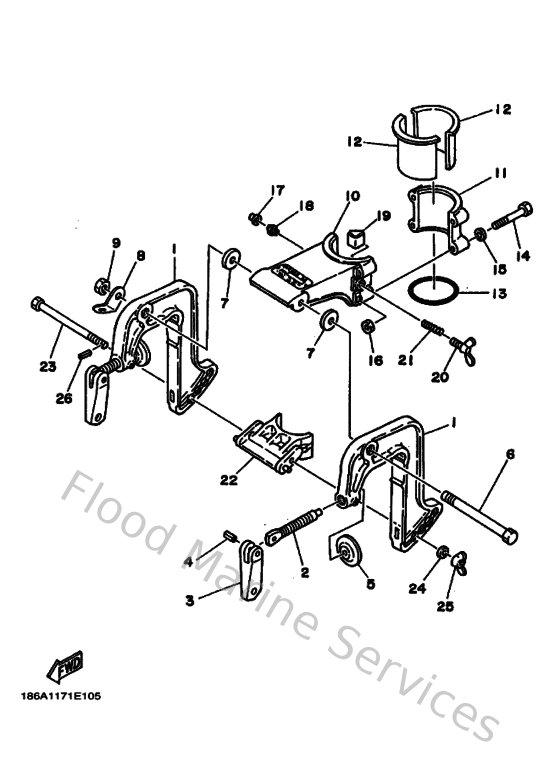

Diagram: Bracket 1
Parts List
Reference
Description
Price
2
6E0431160000
Screw, transom clamp
Loading…
↗
3
6E0431180000
Handle, transom clamp
Loading…
↗
4
9025404M0000
Pin(6a1)
Loading…
↗
5
648431140100
Pad, transom clamp
Loading…
↗
6
901010821700
Bolt 6464313100
Loading…
↗
7
902020802200
Washer 6464313202
Loading…
↗
8
6A1431130000
Plate, clamp bracket
Loading…
↗
9
953800860000
Nut (661)
Loading…
↗
12
646425370100
Bushing, pivot shaft
Loading…
↗
13
932104604400
O-ring
Loading…
↗
14
973950604500
Bolt, hexagon
Loading…
↗
15
929900660000
Washer, plain (646)
Loading…
↗
16
953800660000
Nut(661)
Loading…
↗
17
663451190000
Cap, grease nipple
Loading…
↗
18
937000600400
Nipple, grease(6a1)
Loading…
↗
19
646425280000
Piece, friction
Loading…
↗
20
901220600400
Bolt, wing (646)
Loading…
↗
21
905011227200
Spring 6464252401
Loading…
↗
22
6A1433510000
Receiver, thrust
Loading…
↗
23
6A1433710000
Bolt, receiver
Loading…
↗
24
902010604000
Washer 6464337400
Loading…
↗
25
901750600800
Nut, Wing
Loading…
↗
26
916902000600
Pin, spring (647)
Loading…
↗
