2BMH (1995)
Bracket 1

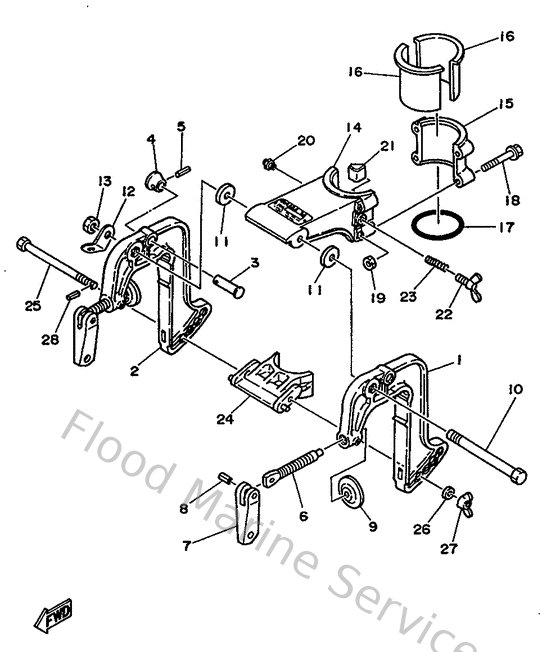

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
6A143111034D
Bracket, clamp
Loading…
↗
2
6A143112004D
Bracket, clamp
Loading…
↗
3
6A1431910000
Shaft, stopper
Loading…
↗
4
6A1431920000
Knob, stopper
Loading…
↗
5
916903001400
Pin, spring (647)
Loading…
↗
6
6E0431160100
Screw, transom clamp
Loading…
↗
7
6EEG31180000
Handle, transom cl
Loading…
↗
8
9025404M0000
Pin(6a1)
Loading…
↗
9
648431140100
Pad, transom clamp
Loading…
↗
10
901010821700
Bolt 6464313100
Loading…
↗
11
902020802200
Washer 6464313202
Loading…
↗
12
6A1431130100
Plate, clamp bracket
Loading…
↗
13
988800810000
Nut, hex.
Loading…
↗
14
6A143311014D
Bracket, swivel 1
Loading…
↗
15
6A143312004D
Bracket, swivel 2
Loading…
↗
16
646425370100
Bushing, pivot shaft
Loading…
↗
17
932104604400
O-ring
Loading…
↗
18
9011906M9800
Bolt, with washer
Loading…
↗
19
953800660000
Nut(661)
Loading…
↗
20
9370006M0300
Nipple, grease(6a1)
Loading…
↗
21
646425280000
Piece, friction
Loading…
↗
22
901220600400
Bolt, wing (646)
Loading…
↗
23
905011227200
Spring 6464252401
Loading…
↗
24
6A1433510000
Receiver, thrust
Loading…
↗
25
6A1433710000
Bolt, receiver
Loading…
↗
26
902010604000
Washer 6464337400
Loading…
↗
27
901750600800
Nut, Wing
Loading…
↗
28
916902000600
Pin, spring (647)
Loading…
↗
