30DETO (1992)
Bracket 1

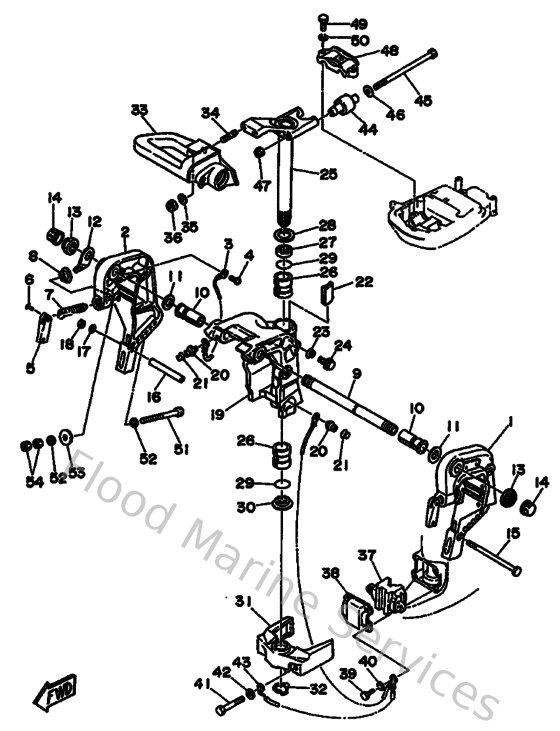

Diagram: Bracket 1
Parts List
Reference
Description
Price
3
6E5821480000
Wire, lead 5
Loading…
↗
4
978950600800
Screw, pan head(6a3)
Loading…
↗
5
6164311800EJ
Handle, transom clamp
Loading…
↗
6
9024304M0000
Pin(6a9)
Loading…
↗
7
9014914M1200
Screw(6h4)
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
6J8431310000
Bolt, clamp bracket
Loading…
↗
10
9038622M6900
Bush(6k9)
Loading…
↗
11
902012242800
Washer, plate(64j)
Loading…
↗
12
6J8431130100
Plate, clamp bracket
Loading…
↗
13
901852200700
Nut, self-locking
Loading…
↗
14
663431450000
Cap, clamp bracket
Loading…
↗
15
901010833900
Bolt, hexagon (656)
Loading…
↗
16
9038708M0300
Collar
Loading…
↗
17
929900860000
Washer, plain (663)
Loading…
↗
18
988800810000
Nut, hex.
Loading…
↗
20
937000600400
Nipple, grease(6a1)
Loading…
↗
21
663451190000
Cap, grease nipple
Loading…
↗
22
6J8425280000
Plate, friction
Loading…
↗
23
689433730100
Seal, damper
Loading…
↗
24
9010506M1800
Bolt (689)
Loading…
↗
26
9038630M7700
Bush(6h0)
Loading…
↗
27
9038630M7800
Bush(6h0)
Loading…
↗
28
9020130M0000
Washer, plate(6h1)
Loading…
↗
29
9321029M9400
O-ring(6h1)
Loading…
↗
30
9038630M6000
Bush(6j8)
Loading…
↗
32
9341028M0600
Circlip (688)
Loading…
↗
34
9011610M2800
Bolt, stud
Loading…
↗
35
929901060000
Washer, plate
Loading…
↗
36
901851002700
Nut, self-locking
Loading…
↗
37
6H4445570000
Mount, lower front
Loading…
↗
38
6H4445530100
Cover, lower mount
Loading…
↗
39
973950802500
Bolt (62g)
Loading…
↗
41
970951006000
Bolt, hexagon
Loading…
↗
43
6H4821270000
Wire, lead 2
Loading…
↗
44
6H4445140000
Mount, upper side
Loading…
↗
45
9010908M2600
Bolt(6j8)
Loading…
↗
46
902010942500
Washer, plate (663)
Loading…
↗
47
901850804500
Nut, self-locking
Loading…
↗
49
970950803500
Bolt(70w)
Loading…
↗
50
929900810000
Ybs67-8 washer, spring
Loading…
↗
51
9010110M5800
Bolt
Loading…
↗
53
902011242600
Washe, plate(663)
Loading…
↗
54
953801060000
Nut(624)
Loading…
↗
