Yamaha Outboard Parts - Bracket 1 - 50DEMTO (1986) | Flood Marine

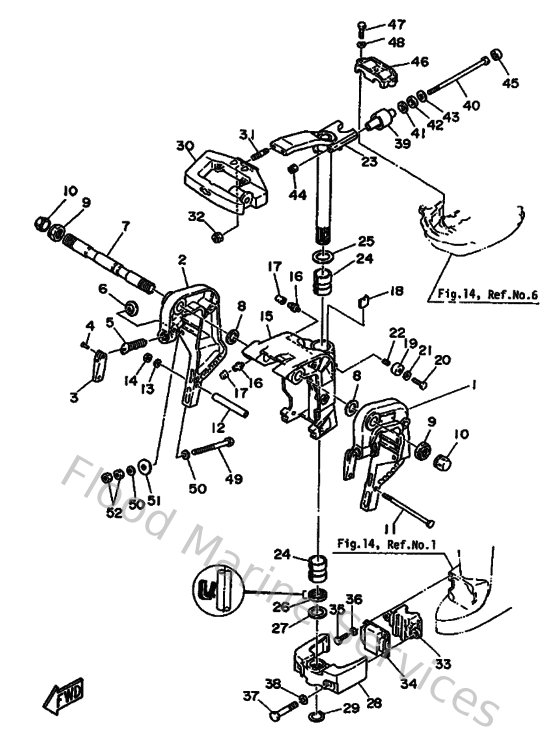

Diagram: Bracket 1

Diagram

Parts List

Reference
Description
Price


3
6164311800EJ
Handle, transom clamp
Loading…

↗
4
902430400100
Pin(6a9)
Loading…

↗
5
901491403000
Screw, transom clamp
Loading…

↗
6
648431140100
Pad, transom clamp
Loading…

↗
7
696431310100
Bolt, clamp bracket
Loading…

↗
8
902012242800
Washer, plate(64j)
Loading…

↗
9
901852204300
Nut, self-locking
Loading…

↗
10
663431450000
Cap, clamp bracket
Loading…

↗
11
901010833900
Bolt, hexagon (656)
Loading…

↗
12
903870901900
Collar
Loading…

↗
13
929900860000
Washer, plain (663)
Loading…

↗
14
953800860000
Nut (661)
Loading…

↗
16
937000600400
Nipple, grease(6a1)
Loading…

↗
17
663451190000
Cap, grease nipple
Loading…

↗
18
6H4425280000
Piece, friction
Loading…

↗
19
676433730000
Damper, seal
Loading…

↗
20
973750803000
Bolt, hexagon (fj1)
Loading…

↗
22
9050118M0000
Spring, compression (676)
Loading…

↗
23
6H44251009EJ
Steering Bracket assembly
Loading…

↗
24
903863004800
Bush
Loading…

↗
25
902013042000
Washer, plate(6h1)
Loading…

↗
26
9310930M0300
Oil seal (688)
Loading…

↗
27
902013141800
Washer plate(663)
Loading…

↗
29
9341028M0600
Circlip (688)
Loading…

↗
30
6H4421210094
Bracket
Loading…

↗
31
901161017500
Bolt, stud
Loading…

↗
32
901851005100
Nut, self-locking
Loading…

↗
33
6H4445570000
Mount, lower front
Loading…

↗
34
6H4445530000
Cover, lower mount
Loading…

↗
35
973950802500
Bolt (62g)
Loading…

↗
37
973951006000
Bolt, hexagon
Loading…

↗
38
929901060000
Washer, plate
Loading…

↗
39
6H4445140000
Mount, upper side
Loading…

↗
40
9010108M8600
Bolt (6h4)
Loading…

↗
42
9020215M3000
Washer, Plate
Loading…

↗
43
902010942500
Washer, plate (663)
Loading…

↗
44
901850804500
Nut, self-locking
Loading…

↗
45
663445330000
Damper, upper mount
Loading…

↗
46
6H4445110000
Cover, Upper Mount
Loading…

↗
47
973750803500
Bolt(70w)
Loading…

↗
48
929900810000
Ybs67-8 washer, spring
Loading…

↗
49
9010110M5800
Bolt
Loading…

↗
51
902011242600
Washe, plate(663)
Loading…

↗
52
953801060000
Nut(624)
Loading…

↗
