75AE (1990)
Bracket 1

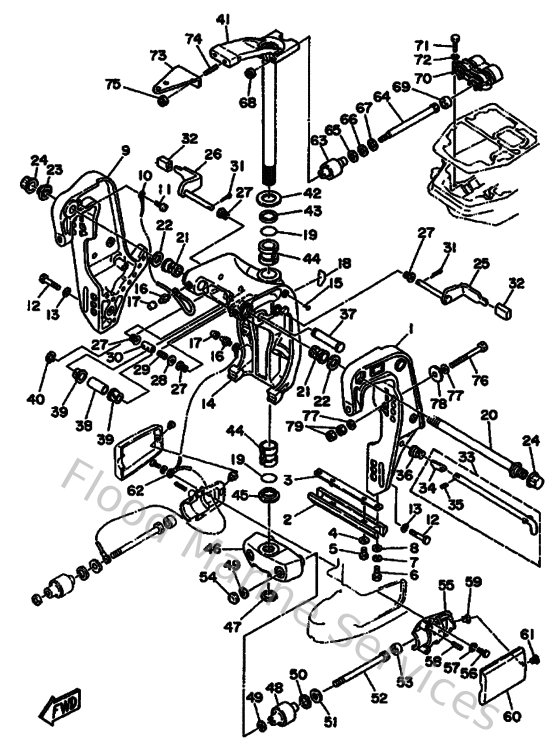

Diagram: Bracket 1
Parts List
Reference
Description
Price
2
6H1452510200
Anode
Loading…
↗
3
6H1445260000
Plate 2
Loading…
↗
4
9020106M3100
Washer (6a0)
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
973950601600
Bolt, hexagon deep recess
Loading…
↗
7
929900610000
Washer(6a1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
10
6E5821480000
Wire, lead 5
Loading…
↗
11
985800601200
Screw, pan head(62j)
Loading…
↗
12
973951004500
Bolt(64d)
Loading…
↗
13
929901010000
Ybs67-10 washer, spring
Loading…
↗
15
902690301000
Rivet (663)
Loading…
↗
16
937000600400
Nipple, grease(6a1)
Loading…
↗
17
663451190000
Cap, grease nipple
Loading…
↗
19
9321029M9400
O-ring(6h1)
Loading…
↗
20
688431310300
Bolt, clamp bracket
Loading…
↗
21
9038622M1500
Bushing (688)
Loading…
↗
22
9020122M6700
Washer, plate (688)
Loading…
↗
23
901852204300
Nut, self-locking
Loading…
↗
24
663431450000
Cap, clamp bracket
Loading…
↗
25
688431810400
Lever, tilt stop 1
Loading…
↗
26
688431850300
Lever, tilt stop 2
Loading…
↗
27
9038610M1600
Bushing (688)
Loading…
↗
28
929901060000
Washer, plate
Loading…
↗
29
9050110M2100
Spring (688)
Loading…
↗
30
9038710M3800
Coller (6e5)
Loading…
↗
31
914903003000
Pin, cotter
Loading…
↗
33
688431600100
Tilt rod ass'y
Loading…
↗
34
688431650000
Stopper, tilt rod
Loading…
↗
35
916903001200
Pin, spring
Loading…
↗
36
9050216M0200
Spring, conical (688)
Loading…
↗
37
6E5431260200
Pin, upper shock mount
Loading…
↗
38
9038618M2100
Bushing (688)
Loading…
↗
39
9038618M3500
Bush (688)
Loading…
↗
40
9341018M0200
Circlip (6f2)
Loading…
↗
42
9020130M0000
Washer, plate(6h1)
Loading…
↗
44
9038630M7700
Bush(6h0)
Loading…
↗
45
9038630M6000
Bush(6j8)
Loading…
↗
47
9341028M0600
Circlip (688)
Loading…
↗
48
687445550094
Mount damper, lower side
Loading…
↗
49
9020112M1600
Washer, plate (679)
Loading…
↗
51
9020113M1900
Washer, plate (663)
Loading…
↗
52
901091226100
Bolt(663)
Loading…
↗
53
663445750000
Damper, lower mount rubber
Loading…
↗
54
953801280000
Nut crown(663)
Loading…
↗
55
687445520194
Housing, lower mount rubber
Loading…
↗
56
970950802500
Bolt (62g)
Loading…
↗
58
905011423600
Spring, compression(64j)
Loading…
↗
59
901790606600
Nut(663)
Loading…
↗
62
688821270200
Wire, lead 2
Loading…
↗
63
688445140000
Mount damper, upper side
Loading…
↗
64
9010110M4900
Bolt
Loading…
↗
65
9020120M2100
Washer, plate (688)
Loading…
↗
66
9020220M0600
Washer, plate (688)
Loading…
↗
67
9020111M2200
Washer, plate (688)
Loading…
↗
68
901851005100
Nut, self-locking
Loading…
↗
70
688445110094
Cover, upper mount
Loading…
↗
71
970950803500
Bolt(70w)
Loading…
↗
72
929900810000
Ybs67-8 washer, spring
Loading…
↗
73
688485111200
Hook, steering
Loading…
↗
74
901161017500
Bolt, stud
Loading…
↗
75
901851002700
Nut, self-locking
Loading…
↗
76
9010112M6500
Bolt
Loading…
↗
77
929951220000
Ybs66-12 washer,plain
Loading…
↗
78
902011242600
Washe, plate(663)
Loading…
↗
79
953801260000
Nut (707)
Loading…
↗
