80AETOL (1988)
Bracket 1

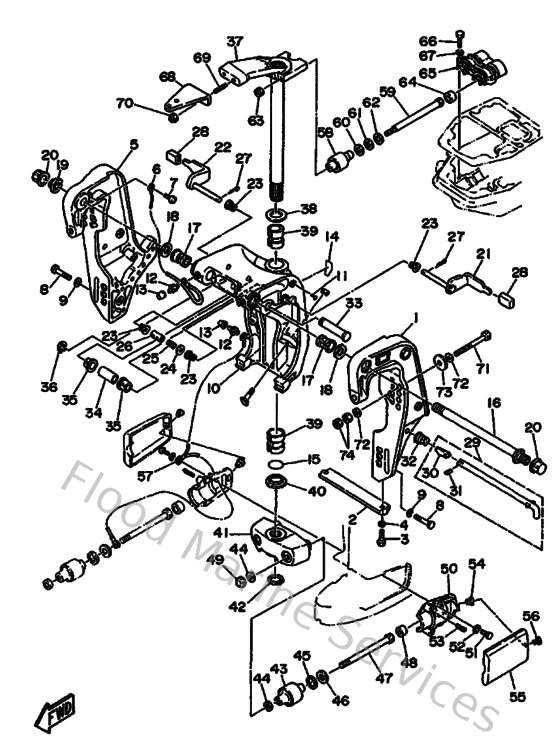

Diagram: Bracket 1
Parts List
Reference
Description
Price
2
6H1452510000
Anode set
Loading…
↗
3
973950603000
Bolt(jf7)
Loading…
↗
4
929900610000
Washer(6a1)
Loading…
↗
5
6884311212EJ
Bracket, Clamp
Loading…
↗
6
6E5821480000
Wire, lead 5
Loading…
↗
7
925800601200
Screw, pan head(62j)
Loading…
↗
8
973951004500
Bolt(64d)
Loading…
↗
9
929901010000
Ybs67-10 washer, spring
Loading…
↗
11
902690301000
Rivet (663)
Loading…
↗
12
937000600400
Nipple, grease(6a1)
Loading…
↗
13
663451190000
Cap, grease nipple
Loading…
↗
15
932102937500
O-ring (j10)
Loading…
↗
16
688431310300
Bolt, clamp bracket
Loading…
↗
17
9038622M1500
Bushing (688)
Loading…
↗
18
9020122M6700
Washer, plate (688)
Loading…
↗
19
901852204300
Nut, self-locking
Loading…
↗
20
663431450000
Cap, clamp bracket
Loading…
↗
21
688431810400
Lever, tilt stop 1
Loading…
↗
22
688431850300
Lever, tilt stop 2
Loading…
↗
23
9038610M1600
Bushing (688)
Loading…
↗
24
929901060000
Washer, plate
Loading…
↗
25
9050110M2100
Spring (688)
Loading…
↗
26
9038710M3800
Coller (6e5)
Loading…
↗
27
914903002500
Pin cotter
Loading…
↗
28
663433180000
Cover
Loading…
↗
29
688431600100
Tilt rod ass'y
Loading…
↗
30
688431650000
Stopper, tilt rod
Loading…
↗
31
916903001200
Pin, spring
Loading…
↗
32
9050216M0200
Spring, conical (688)
Loading…
↗
33
6E5431260100
Pin, upper shock mount
Loading…
↗
34
9038618M2100
Bushing (688)
Loading…
↗
35
9038618M3500
Bush (688)
Loading…
↗
36
9341018M0200
Circlip (6f2)
Loading…
↗
37
68842510038D
Steering bracket assembly
Loading…
↗
38
9020130M0000
Washer, plate(6h1)
Loading…
↗
39
903863004800
Bush
Loading…
↗
40
9038630M6000
Bush(6j8)
Loading…
↗
41
6634455102EJ
Hsg Lower M0Unt
Loading…
↗
42
9341028M0600
Circlip (688)
Loading…
↗
43
687445550094
Mount damper, lower side
Loading…
↗
44
9020112M1600
Washer, plate (679)
Loading…
↗
45
9020225M0400
Washer, plate (663)
Loading…
↗
46
9020113M1900
Washer, plate (663)
Loading…
↗
47
901091226100
Bolt(663)
Loading…
↗
48
663445750000
Damper, lower mount rubber
Loading…
↗
49
953801280000
Nut crown(663)
Loading…
↗
50
687445520194
Housing, lower mount rubber
Loading…
↗
51
970950802500
Bolt (62g)
Loading…
↗
52
929900810000
Ybs67-8 washer, spring
Loading…
↗
53
905011423600
Spring, compression(64j)
Loading…
↗
54
901790606600
Nut(663)
Loading…
↗
56
985800601600
Screw pan head
Loading…
↗
57
688821270200
Wire, lead 2
Loading…
↗
58
688445140094
Mount damper, upper side
Loading…
↗
59
9010110M4900
Bolt
Loading…
↗
60
9020120M2100
Washer, plate (688)
Loading…
↗
61
9020220M0600
Washer, plate (688)
Loading…
↗
62
9020111M2200
Washer, plate (688)
Loading…
↗
63
901851005100
Nut, self-locking
Loading…
↗
65
688445110000
Cover, upper mount
Loading…
↗
66
973900803500
Bolt(70w)
Loading…
↗
68
688485111200
Hook, steering
Loading…
↗
69
901161017500
Bolt, stud
Loading…
↗
70
901851002700
Nut, self-locking
Loading…
↗
71
9010112M6500
Bolt
Loading…
↗
72
929951220000
Ybs66-12 washer,plain
Loading…
↗
73
902011242600
Washe, plate(663)
Loading…
↗
74
953801260000
Nut (707)
Loading…
↗
