9.9FMH (1995)
Bracket 1

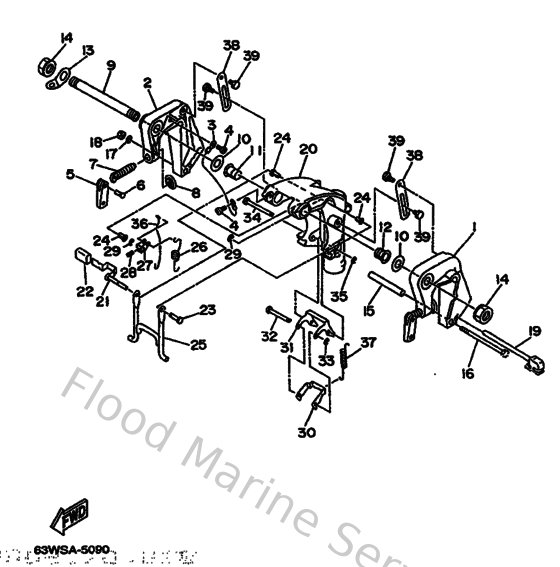

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
63V43111004D
Clamp bracket set
Loading…
↗
2
63V43112004D
Clamp bracket set
Loading…
↗
3
6E5821480000
Wire, lead 5
Loading…
↗
4
978850600800
Screw, pan head(6a3)
Loading…
↗
5
999990280800
Handle, transom clamp
Loading…
↗
6
9024304M0000
Pin(6a9)
Loading…
↗
7
6E7431160000
Screw, transom clamp
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
63V431311000
Bolt, clamp bracket
Loading…
↗
10
9020222M5400
Washer, plate(63v)
Loading…
↗
11
9038622M9400
Bush(63v)
Loading…
↗
13
6J8431130100
Plate, clamp bracket
Loading…
↗
14
901852200700
Nut, self-locking
Loading…
↗
15
9038706M1300
Collar(6h6)
Loading…
↗
16
9010106M2900
Bolt, hexagon (682)
Loading…
↗
17
929900660000
Washer, plain (646)
Loading…
↗
18
9538R0670000
Nut
Loading…
↗
19
6L2431600000
Tilt rod assembly
Loading…
↗
20
63V43311004D
Bracket, swivel
Loading…
↗
21
63V436300000
Tilt lever assembly
Loading…
↗
22
682433180100
Cover
Loading…
↗
23
63V431910000
Shaft, stopper
Loading…
↗
24
9038607M9500
Bush(63v)
Loading…
↗
25
63V43350004D
Receiver Assembly
Loading…
↗
26
9050720M0000
Spring, tension(63v)
Loading…
↗
27
63V436410000
Lever, Tilt
Loading…
↗
28
916903001200
Pin, spring
Loading…
↗
29
990800560000
Circlip(22k)
Loading…
↗
30
63V436140000
Plate, Tilt Lock
Loading…
↗
31
63V436150000
Plate, Tilt Lock
Loading…
↗
32
63V436110000
Shaft, Tilt Lock
Loading…
↗
34
63V436590000
Shaft, reverse lock
Loading…
↗
36
63V436170000
Rod, Tilt Lock
Loading…
↗
37
9050726M0000
Spring, tension(63v)
Loading…
↗
38
63V431810000
Lever, tilt stop 1
Loading…
↗
39
9010906M6900
Bolt
Loading…
↗
