E40XMH (1999)
Bracket 1

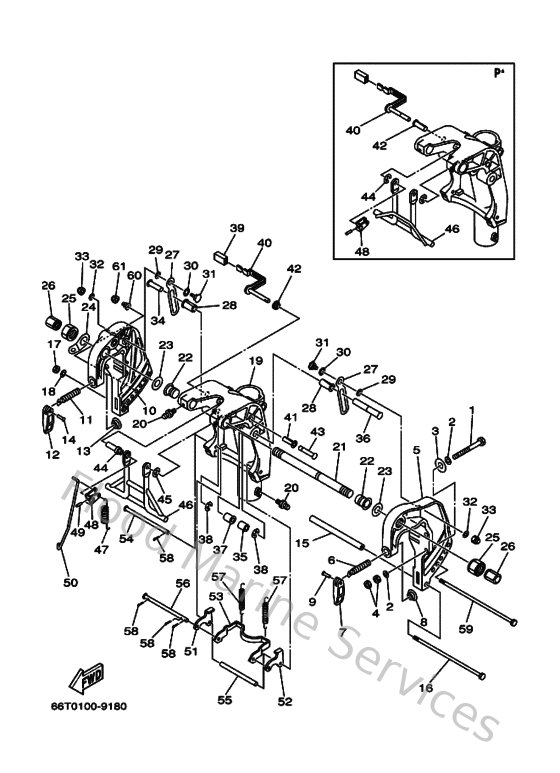

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
9010110M5800
Bolt
Loading…
↗
2
929951060000
Washer, plate
Loading…
↗
3
902011242600
Washe, plate(663)
Loading…
↗
4
953801060000
Nut(624)
Loading…
↗
5
66T43111018D
Bracket, clamp 1
Loading…
↗
6
9014914M1200
Screw(6h4)
Loading…
↗
7
66343118014D
Handle, transom clamp
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
902430400700
Pin (663)
Loading…
↗
10
66T43112004D
Bracket, clamp 2
Loading…
↗
15
9038708M2900
Collar
Loading…
↗
16
9010108M7600
Bolt
Loading…
↗
17
988800810000
Nut, hex.
Loading…
↗
18
929900810000
Ybs67-8 washer, spring
Loading…
↗
19
65W43311118D
Bracket, swivel 1
Loading…
↗
20
9370006M0300
Nipple, grease(6a1)
Loading…
↗
21
63D431310100
Bolt, clamp bracket
Loading…
↗
22
9038622M1500
Bushing (688)
Loading…
↗
23
9020122M0300
Washer, plate(64j)
Loading…
↗
24
6J8431130100
Plate, clamp bracket
Loading…
↗
25
901852200700
Nut, self-locking
Loading…
↗
26
6G5431450000
Cap, clamp bracket
Loading…
↗
27
66T436270000
Stopper
Loading…
↗
28
9038612M9800
Bush
Loading…
↗
29
902021203100
Washer, plate 6484412600
Loading…
↗
30
9020612M0000
Washer, wave (676)
Loading…
↗
31
9010908M9000
Bolt
Loading…
↗
32
9020108M0700
Washer, plate
Loading…
↗
33
901850805700
Nut, nylon (6j8)
Loading…
↗
34
9024912M3400
Pin
Loading…
↗
35
9038712M0400
Collar
Loading…
↗
36
9024912M3900
Pin
Loading…
↗
37
9038612MA000
Bush, solid
Loading…
↗
38
990801060000
Circlip
Loading…
↗
39
663433180000
Cover
Loading…
↗
40
65W436301000
Tilt Lever Assembly
Loading…
↗
41
9038610M9900
Bush
Loading…
↗
42
9038607MA200
Bush
Loading…
↗
43
9024910M3100
Pin
Loading…
↗
44
9038707M0500
Collar
Loading…
↗
45
990800860000
Circlip
Loading…
↗
46
66T433500100
Receiver assembly
Loading…
↗
47
9050620M3700
Spring, tension
Loading…
↗
48
66T436311000
Lever, Tilt
Loading…
↗
49
9025403M0300
Pin, spring
Loading…
↗
50
65W436160000
Rod, tilt lock
Loading…
↗
51
65W436140000
Plate, Tilt Lock
Loading…
↗
52
65W436150000
Plate, Tilt Lock
Loading…
↗
53
65W436130000
Arm, tilt lock
Loading…
↗
54
9024907M3200
Pin
Loading…
↗
55
9038707M2900
Collar
Loading…
↗
56
9024907M3300
Pin
Loading…
↗
57
9050630M0000
Spring, tension (676)
Loading…
↗
58
914902001500
Pin, cotter (648)
Loading…
↗
59
9010108M2800
Bolt
Loading…
↗
60
9050210M0600
Spring, conical(6g1)
Loading…
↗
